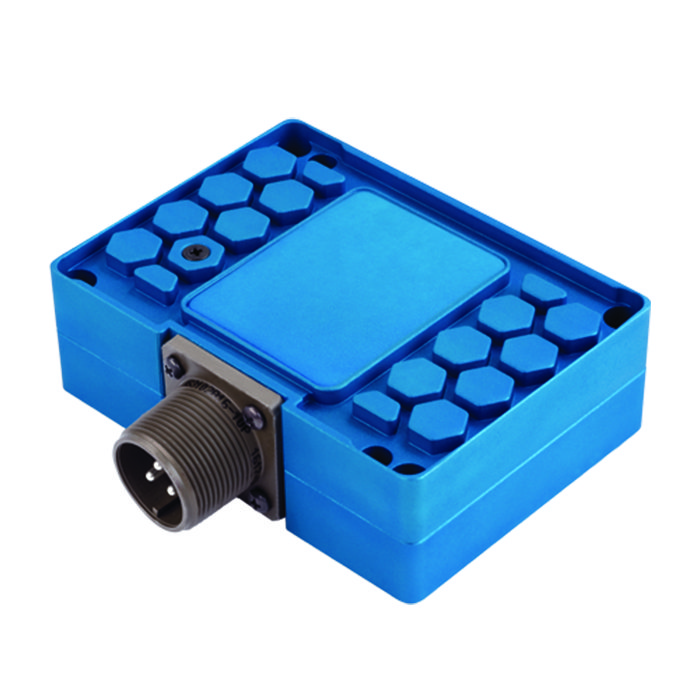

Picture of product TC230

Part #:

Model: TC230

OEM:

Mid-Continent

Desc:

Power Converter (10-18V to 28V)

Part Number :


TC230 Series
FEATURES
  • 230 Watt DC to DC Converter
  • Ideal for general, business and commercial aircraft applications
  • Supplies 230 watts of power from the aircraft's existing 10-18 VDC input to power 28 VDC equipment
  • Compact, fan less design
  • Reduces weight
  • Offers flexible installation
  • Optional remote on/off feature available
  • Protection includes input transient, overload and short circuit, temperature monitoring, and reverse polarity
  • 4x Ø0.15 mounting holes for #6-32 x 1.0" (min)
  • Designed and manufactured in Wichita, Kansas USA
  • Two-year limited warranty
SPECIFICATIONS
output power: 230 Watts Input voltage: 10-18 VDC
Output voltage: 28 VDC Input current: 18.0 A Nominal
remote on/off: Optional COOLING: None required
efficiency: 90% Nominal Regulation: 1% load, 2% temperature
weight: 0.70 lbs Dimensions: 1.29" H x 3.75" L x 2.75" D (3.5" D with Connector)
Temperature: -67º to +158ºF (-55ºC to +70ºC) altitude: 55,000 ft
Mating Connector: pn 9018654 (TC230 -1) / pn 9018655 (TC230 -2) case: Anodized aluminum, blue
Certification: FAA TSO C71 certified, FTCA DO-160G qualified
Part Number converter Description:
6430234-1 Basic Version
6430234-2 Includes Remote On/Off Feature



6430234-1
- Power Converter (10-18V to 28V)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
6430234-2
- 10-18 VDC in, 28 VDC out (8A), 230 watts
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

Southeast Aerospace recommends the Mid-Continent TC230 step up converter. The TC230 takes in 10-18 VDC and outputs 28 VDC at 230 watts output power. It weighs less than 1 pound and is compact in size.
