Part #:

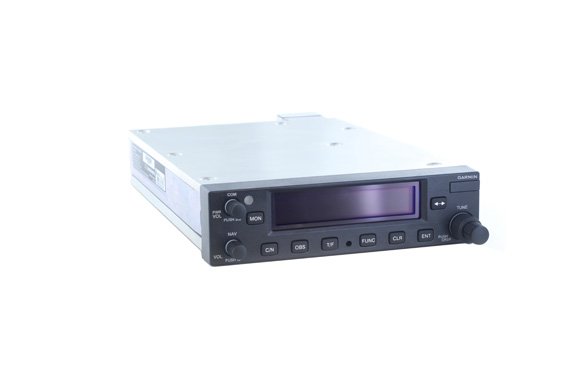

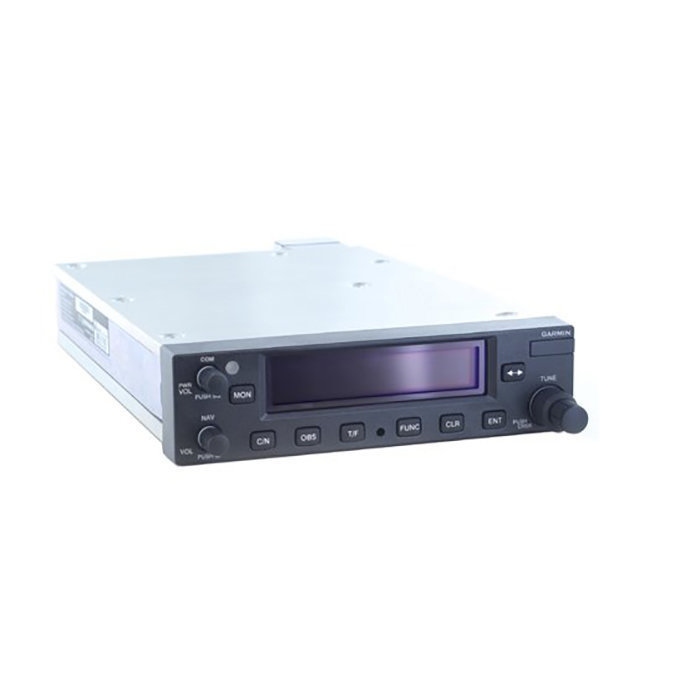

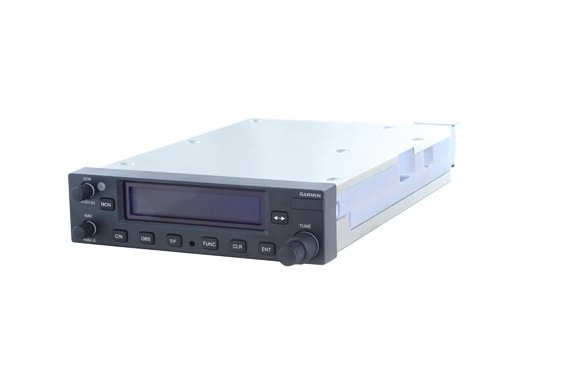

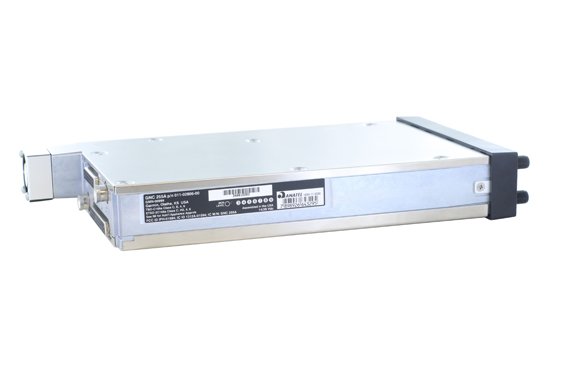

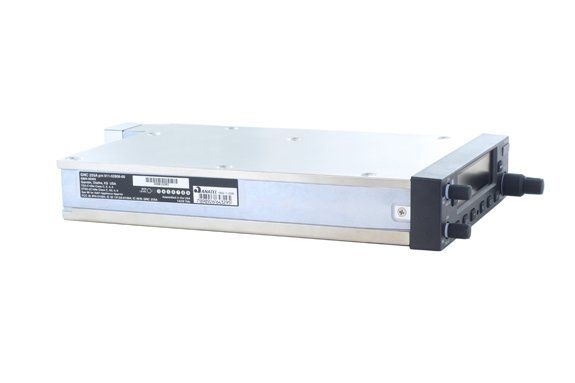

Model: GNC-255B

OEM:

Garmin

Desc:

VHF Nav/Com, 8.33kHz, 16W

Part Number :





GNC-255B

FEATURES

  • Nav/Com with VOR/localizer and glideslope receiver
  • 16W transmitter output (10W version available, see GNC-255A)
  • 25 kHz frequency channel spacing and 8.33 kHz channel spacing to meet the impeding Single European Sky mandate (European operaters by 2018)
  • Built-in VOR/Localizer converter
  • Database lookup of frequencies using navaid ID
  • VOR receiver displays to/from and radial
  • Digitally decoded OBS setting
  • Sunlight readable full alphanumeric display
  • Automatic display of station ID by decoding Morse code
  • Interfaces with most CDI (w/resolver), HSI, and autopilot systems
  • Flight Service Stations, ATC facilities, WX stations, etc.
  • Active and standby flip-flop frequencies
  • One-touch 121.5 emergency channel tuning
  • Comm frequency monitor function (listens to standby while monitoring the active)
  • Recall of frequency from database by facility name and type
  • Database reverse lookup of frequencies providing station ID andfrequency use (TWR, ATIS, etc.)
  • Volume control bar graph display
  • Alphanumeric display of frequency types (ATIS, GRND, TWR, etc.)
  • High-visibility alphanumeric LCD display
  • Transmit status indicator
  • Backlit keypad controls
  • Automatic and manual, pilot-selectable display intensity control
  • Built-in, two-place voice activated intercom
  • Frequency memory and recall
  • Stores/recalls 15 user defined frequencies
  • Stores/recalls previous 20 frequencies used
  • Squelch test function
  • Stuck mic time-out
  • 12W audio amplifier
  • Nav/Comm versions available: GNC-255A / GNC-255B
  • Please Note: Garmin "010" P/N's are Catalog ONLY

*** PLEASE NOTE THE PART NUMBER DIFFERENCES FOR UNITS THAT ARE FOR FIXED WING OR HELICOPTER INSTALLATIONS ONLY ***



SPECIFICATIONS

Dimensions: 1.65" H x 6.25" W x 10.4" D (11.23" D behind panel, including mounting rack and connectors) Weight: 3.02 lbs unit only; 3.46 lbs with mounting rack
Altitude: 55,000 ft Temperature Range: -20C to +55C
Input Voltage range: 9 to 33 VDC Transmit power: 16 W
Certifications: TSO C169a (transmitting and receiving), TSO C128a (stuck mic)
Part Number: Description:
010-00999-50 Standard Kit, Helicopter Installation Only
010-00999-70 Standard Kit, Helicopter Installation Only, NVIS-B Compatible
010-02487-50 Standard Kit, Fixed Wing Installation Only
010-02487-70 Standard Kit, Fixed Wing Installation Only, NVIS-B Compatible
011-02719-00 Unit Only P/N, Helicopter Installation Only
011-02719-20 Unit Only P/N, Helicopter Installation Only, NVIS-B Compatible
011-02719-40 Unit Only P/N, Fixed Wing Installation Only
011-02719-60 Unit Only P/N, Fixed Wing Installation Only, NVIS-B Compatible



010-00999-50
- Nav/Comm (Helicopter Installation)
Price Condition Status
RFQ RFQ RFQ
011-02719-20
- Nav/Comm (NVIS-B)
Price Condition Status
$4,250.00 SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The GNC-255A/B uses a standard USB memory device to load the frequency database. The memory device is not provided by Garmin. The Frequency database is stored internally and the USB memory device is only used to transfer the database into the unit.

The GNC-255A/B contains a large database of Com frequencies that may be recalled by identifier.

The GNC-255's Com radio operates in the aviation voice band, from 118.000 to 136.975 MHz, in 25 kHz steps (default). For European operations, a Com radio configuration of 8.33 kHz steps is also available. The GNC-255 VHF Nav receiver operates from 108 MHz to 117.95 MHz decoding both the VHF Omni Range and Localizer navigation signals. The built-in Glideslope receiver will automatically tune the corresponding glideslope paired frequencies (328 MHz to 335 MHz) when the localizer is tuned. The GNC 255 is available in 10 and 16 watt com transmitter versions. The GNC 255A is available with a 10 watt com transmitter. The GNC 255B is available with a 16 watt com transmitter.

The current Standby frequency may be saved into the Com or Nav User Frequency database from the Com or Nav display. The Com and Nav User Frequency database can hold up to 15 frequencies each.

When the GNC-255A/B has received data from an external device, such as a GPS receiver or DME sensor through the serial port, speed, time, and distance data will be available. If you are not connected to an external sensor, you will not see this display.

The Garmin GNC-255A and GNC-255B radios are compatible with a variety of indicators including the Garmin GI-102A and GI106A as well as the King KI-202, KI-203, KI-204, KI-206, KI-208, KI-208A, KI-209, KI-209A.
