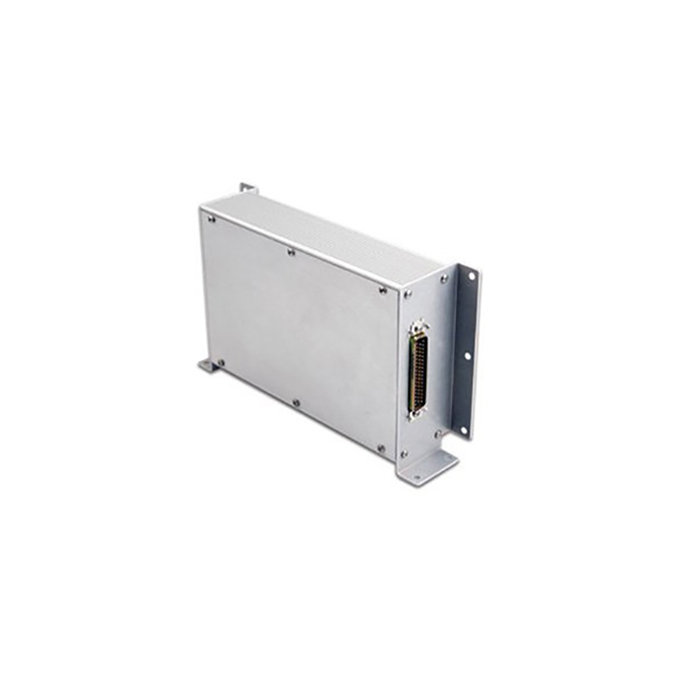

Picture of product GAD-43

Part #:

Model: GAD-43

OEM:

Garmin

Desc:

Interface Adapter

Part Number :




GAD-43



FEATURES

  • Specifically designed for the G600 & G500 flight display systems
  • Offers enhanced autopilot interface capabilities
  • Enables AHRS digital attitude/heading reference to be used with selected autopilots in place of ADI gyro indicators
  • Interfaces with the Garmin GDU-620 panel display for configuration & alerting, with the GRS-77 remote AHRS unit for attitude, heading and yaw input information
  • Can emulate the system's gyro interfaces (such as the KI-256) with more reliable AHRS data
  • Designed as an open architecture system that uses typical XYZ, ARINC 429 and RS-232 interfaces
  • Also includes analog radar stabilization signals, bootstrap heading output, and a baro altitude correction interface
  • Is now approved to replace: King KI-256 (or equivalent) used on KAP-100, KAP/KFC-150, KAP/KFC-200, KFC-225 and KFC-275; and Collins 332D-11T used on select APC-65 installs
  • PN 011-01970-00 not intended for aircraft with Century autopilots
Part Number: Description:
010-00724-00 Catalog PN without installation kit (Non-Century compatible)
010-00724-01 Catalog PN without installation kit for G600 (Non-Century compatible)
010-00724-02 Catalog PN without installation kit for G500 (Non-Century compatible)
010-00724-03 Catalog PN without installation kit (supersedes -00, Century compatible)
010-00724-04 Catalog PN without installation kit for G600 (supersedes -01, Century compatible)
010-00724-05 Catalog PN without installation kit for G500 (supersedes -02, Century compatible)
011-01970-00 Unit only PN, Not Century compatible
011-01970-01 Unit only PN, Supersedes -00, Century compatible



010-00724-00
- Interface Adapter

NSN: 7025-01-604-6146

Price Condition Status
REQUEST NEW INSTALL ONLY
010-00724-01
- Interface Adapter w/ Installation Kit (G600)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-00724-02
- Interface Adapter w/ Installation Kit (G500)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-00724-03
- Interface Adapter (w/o Install Kit)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
010-00724-04
- Interface Adapter w/ Installation Kit (G600)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-01970-00
- Gyro Adapter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
011-01970-01
- Interface Adapter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The KI-256 is a gyro based attitude indicator that is an integral part of the KFC-200 flight control system. The KFC-200 autopilot is installed per STC. Therefore, it cannot be easily removed and replaced with another instrument.

Recently, Garmin has developed the G600 flight deck retrofit that integrates with existing KFC-200 systems. This is a system that integrates many flight display and navigation features not simply attitude and flight control information. The dual screen G600 integrates with other Garmin avionics systems such as the GNS430/530 providing both Primary Flight Display (PFD) and Multi-Function Display (MFD) functions. Furthermore, the Garmin GAD-43 adapter eliminates the system's need for gyro instruments such as the KI-256. The GAD-43 provides AHRS attitude/heading reference.

Therefore, there is not a plug-and-play, direct replacement solution for the KI-256 instrument only.

Newly Overhauled parts obtained from Garmin are designated with an N in their part number. This usually follows the 010- in the part number. As with most Garmin 010 part numbers, the N part numbers are for ordering purposes only and do not actually appear on the dataplate of the unit.
