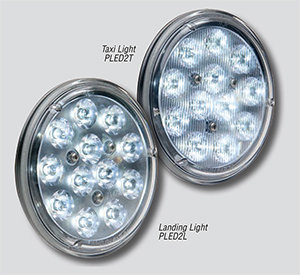

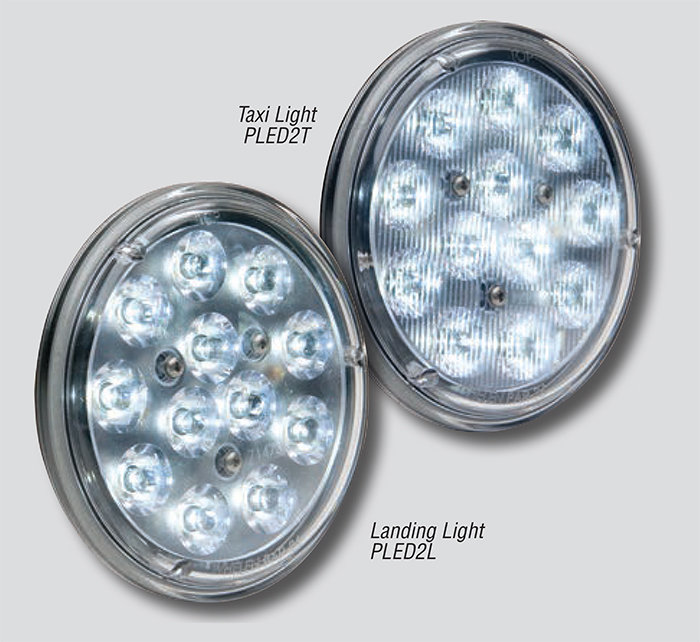

Picture of product PLED2L

Part #: 01-0771833-20

Model: PLED2L

OEM:

Whelen

Desc:

PAR-36 Super LED Landing Light, 28V

Part Number :


Parmetheus Series
FEATURES
  • PAR-36 Super-LED® Landing Light, 28 VDC
  • Whelen TIR™ (Total Internal Reflector) technology, combining spot and flood optical combination, resulting in superior intensity and effectiveness.
  • Convenient “Drop-In” design for ease of installation:
    • Power wiring attaches to brass screw terminals.
    • Weight is virtually identical to previous lamps.
    • Assembly design includes clocking notch.
  • Moisture resistant providing stable light output for thousands of trouble-free operating hours.
  • Proudly designed and manufactured in the USA.
  • Low current and lightweight.
  • Metal, heat dissipating coated housing.
  • Direct replacement for outdated PAR-36 Halogen and HID lamps.
  • First FAA Approved PAR-36 Super-LED for Aviation applications.
  • Available in Landing and Taxi versions.
  • Polycarbonate, replaceable, hard-coated outer lens.
SPECIFICATIONS
size: 4.38" Round x 1.75" Face AMPS: .6 Amps @ 28VDC
model P/n: Light Description:
PLED1L 01-0771424-10 Landing (Spot Light 10°), 14 VDC
PLED1T 01-0771424-15 Taxi (Spreader Optic, 40°), 14 VDC
PLED2L 01-0771424-20 Landing (Spot Light 10°), 28 VDC
PLED2T 01-0771424-25 Taxi (Spreader Optic, 10°), 28 VDC



01-0771833-20
- PAR-36 Super LED Landing Light, 28V
