Part #: 01-0770062-03

Model: A490ATSCF

NSN:

6130-01-415-1161

OEM:

Whelen

Desc:

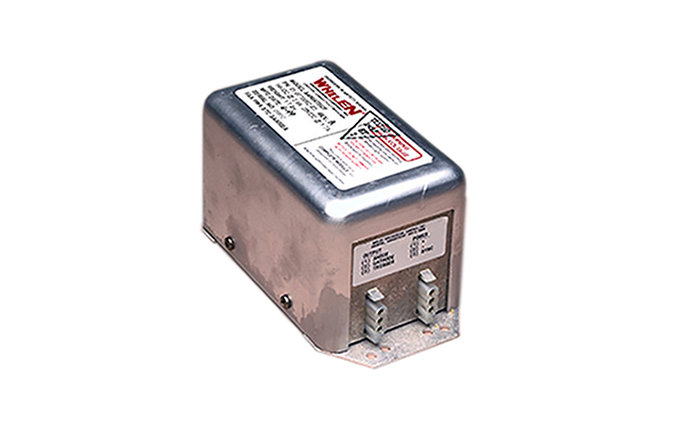

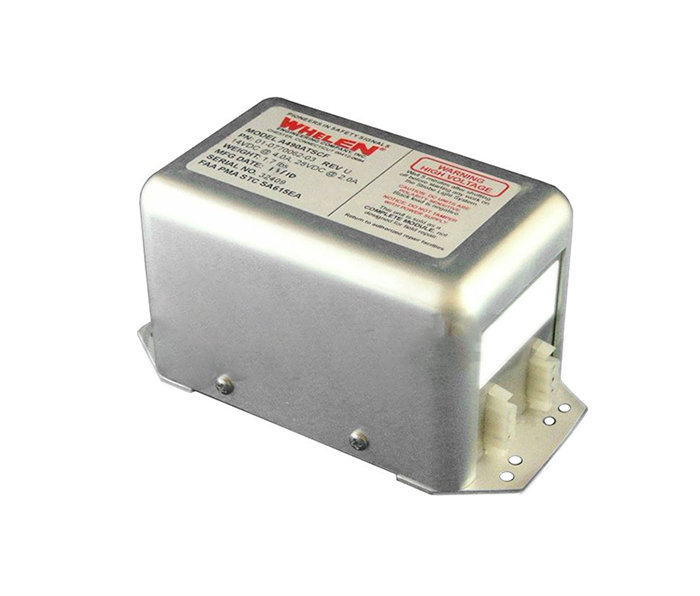

Strobe Power Supply

Part Number :
Whelen Logo

A490ATSC Series
FEATURES
  • Strobe power supply
  • Operates one strobe light head
  • Compact size allows mounting in the wing tip and/or the tail, adjacent to the light head
  • Produces an accumulated 34 joules of power and can be equipped to flash simultaneously with up to 5 other like units by connecting an 18 gauge wire between outlet 3 on the input power connector
  • Operates from 10 to 30 VDC
SPECIFICATIONS
Power Consumption: 4.0 Amps @ 14 VDC; 2.0 Amps @ 28 VDC weight: 1.7 lbs
Length: 5" L x 3.12" W x 3.06" H Approvals: FAA/PMA, STC SA615EA



01-0770062-03
- Strobe Power Supply (28VDC)

NSN: 6130-01-415-1161

Price Condition Status
$1,095.00 NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
