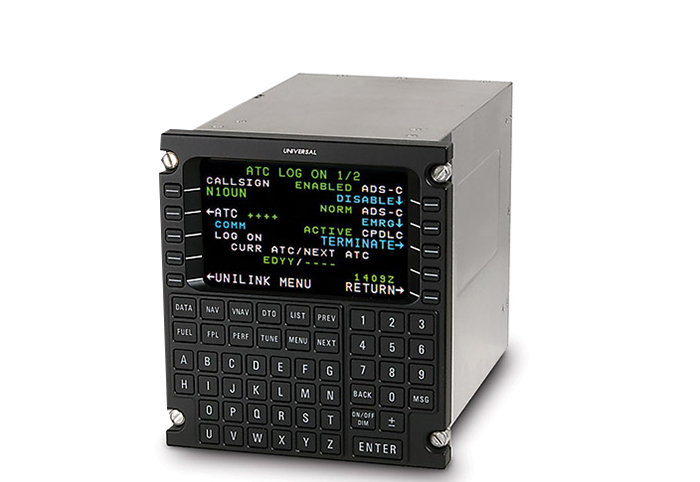

Picture of product UNS-1Espw

Part #:

Model: UNS-1Espw

OEM:

Universal Avionics

Desc:

Flight Management System
Part Number :

Universal Avionics Systems Corporation



UNS-1ESpw



FEATURES

  • This special package version UNS-1Espw has a reduced depth and includes the same features with the exception that it is an all-digital system only
  • Self-contained design which includes control/display functions and the Navigation Computer Unit (NCU) with integral GPS/SBAS receiver
  • Graphics and video-capable 5-inch diagonal display with a housing depth of approximately 9 inches
  • Analog Roll steering and discretes are included
  • ​Flat Panel Color Displays (integral/CDU)
  • Up to 2,000 routes, 200 company waypoints and 100 company airports
  • Clearance-language format
  • ARINC 424 procedural leg guidance
  • VNAV Fully coupled, Computed top-of-descent, Target vertical speed,Vertical Direct-To
  • Universal Cockpit Display Compatible
  • SCAT-I GPS Approach Compatible
  • SBAS Planned Growth
  • LAAS Planned Growth



SPECIFICATIONS

dimensions:  6.38 in. H x 5.75 in. W x 7.62 in. D weight:  7.2 lbs.
mounting:  ¼ turn Dzus Fasteners control display:  Integral 5-inch color Flat Panel Display
standard interface: All Digital Configuration, 8 Inputs/5 Outputs Power: Primary Input: 28 VDC standard, Lighting: 5 or 28 VDC, Consumption: 78 Watts max, Cooling: Convection
Internal SBAS/GPS Receiver: 12-Channel Satellite Tracking Engine, TSO-C146c, Class Gamma-3, FDE Prediction Program for Remote/Oceanic Ops FAA TSO/ETSO: C109, C115b, C146c, C190, JTSO C115b
Part Number: Description:
2019-41-201 Gray 5V Panel, WAAS/SBAS, Video/Graphics
2019-42-201 Black 5V Panel, WAAS/SBAS, Video/Graphics
2019-43-201 Gray 28V Panel, WAAS/SBAS, Video/Graphics
2019-44-201 Black 28V Panel, WAAS/BSAS, Video/Graphics
3019-31-201 Gray 5V Panel, WAAS/SBAS, Video/Graphics, MMMS
3019-32-201 Black 5V Panel, WAAS/SBAS, Video/Graphics, MMMS
3019-33-201 Gray 28V Panel, WAAS/SBAS, Video/Graphics, MMMS
3019-34-201 Black 28V Panel, WAAS/SBAS, Video/Graphics, MMMS



2019-42-201
- WAAS FMS (Black, 5V)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2019-43-201
- WAAS FMS (Gray, 28V)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2019-44-201
- WAAS FMS (Black, 28V)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-41-201
- FMS, WAAS/SBAS
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-41-209
- FMS, SBAS, Video/Graphics, Gray 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-41-301
- FMS, SBAS, FCDB, Gray 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-41-309
- FMS, SBAS, FCDB, Gray 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-41-401
- FMS, SBAS, FlexPerf & FCDB, Gray 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-41-409
- FMS, SBAS, FlexPerf & FCDB, Gray 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-41-501
- FMS, SBAS, FlexPerf, Video/Graphics, Gray 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-41-509
- FMS, SBAS, FlexPerf, Video/Graphics, Gray 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-42-201
- FMS, WAAS/SBAS
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-42-209
- FMS, SBAS, Video/Graphics, Black 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-42-301
- FMS, SBAS, FCDB, Black 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-42-309
- FMS, SBAS, FCDB, Black 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-42-401
- FMS, SBAS, FlexPerf & FCDB, Black 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-42-409
- FMS, SBAS, FlexPerf & FCDB, Black 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-42-501
- FMS, SBAS, FlexPerf, Vid/Graph, Blk 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-42-509
- FMS, SBAS, FlexPerf, Vid/Graph, Blk 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-43-201
- FMS, WAAS/SBAS
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-43-209
- FMS, SBAS, Video/Graphics, Gray 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-43-301
- FMS, SBAS, FCDB, Gray 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-43-309
- FMS, SBAS, FCDB, Gray 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-43-401
- FMS, SBAS, FlexPerf & FCDB, Gray 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-43-409
- FMS, SBAS, FlexPerf & FCDB, Gray 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-43-501
- FMS, SBAS, FlexPerf, Vid/Graph, Gray 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-44-201
- FMS, WAAS/SBAS
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-44-209
- FMS, SBAS, Video/Graphics, Black 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-44-301
- FMS, SBAS, FCDB, Black 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-44-309
- FMS, SBAS, FCDB, Black 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-44-401
- FMS, SBAS, FlexPerf & FCDB, Black 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-44-409
- FMS, SBAS, FlexPerf & FCDB, Black 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-44-501
- FMS, SBAS, FlexPerf, Vid/Graph, Black 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-44-509
- FMS, SBAS, FlexPerf, Vid/Graph, Black 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-45-201
- FMS, SBAS, Video/Graphics, NVG, Gray 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-45-209
- FMS, SBAS, Video/Graphics, NVG, Gray 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-45-301
- FMS, SBAS, FCDB, NVG, Gray 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-45-309
- FMS, SBAS, FCDB, NVG, Gray 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-45-401
- FMS, SBAS, FlexPerf & FCDB, NVG, Gray 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-45-409
- FMS, SBAS, FlexPerf & FCDB, NVG, Gray 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-45-501
- FMS, SBAS, FlexPerf, Vid/Graph, NVG, Gray 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-45-509
- FMS, SBAS, FlexPerf, Vid/Graph, NVG, Gray 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-46-201
- FMS, SBAS, Video/Graphics, NVG, Black 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-46-209
- FMS, SBAS,Video/Graphics,NVG,Black 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-46-301
- FMS, SBAS, FCDB, NVG, Black 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-46-309
- FMS, SBAS, FCDB, NVG, Black 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-46-401
- FMS, SBAS, FlexPerf & FCDB, NVG, Black 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-46-409
- FMS, SBAS, FlexPerf & FCDB, NVG, Black 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-46-501
- FMS, SBAS, FlexPerf, Vid/Graph, NVG, Black 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-46-509
- FMS, SBAS, FlexPerf, Vid/Graph, NVG, Black 5V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-47-201
- FMS, SBAS, Video/Graphics, NVG, Gray 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-47-209
- FMS, SBAS, Video/Graphics, NVG, Gray 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-47-301
- FMS, SBAS, FCDB, NVG, Gray 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-47-309
- FMS, SBAS, FCDB, NVG, Gray 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-47-401
- FMS, SBAS, FlexPerf & FCDB, NVG, Gray 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-47-409
- FMS, SBAS, FlexPerf & FCDB, NVG, Gray 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-47-501
- FMS, SBAS, FlexPerf, Vid/Graph, NVG, Gray 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-47-509
- FMS, SBAS, FlexPerf, Vid/Graph, NVG, Gray 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-48-201
- FMS, SBAS, Video/Graphics, NVG, Black 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-48-209
- FMS, SBAS, Video/Graphics, NVG, Black 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-48-301
- FMS, SBAS, FCDB, NVG, Black 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-48-309
- FMS, SBAS, FCDB, NVG, Black 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-48-401
- FMS, SBAS, FlexPerf & FCDB, NVG, Black 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-48-409
- FMS, SBAS, FlexPerf & FCDB, NVG, Black 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-48-501
- FMS, SBAS, FlexPerf, Vid/Graph, NVG, Blk 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
3019-48-509
- FMS, SBAS, FlexPerf, Vid/Graph, NVG, Blk 28V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
