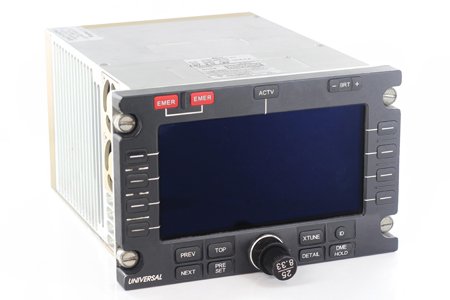

Picture of product RCU

Part #:

Model: RCU

OEM:

Universal Avionics

Desc:

Radio Control Unit

Part Number :
Universal Avionics Systems Corporation


RCU



FEATURES

  • Radio Control Unit (RCU)
  • FAA TSO C-113
  • Provides the pilot with a single easy-to-read display with simple bezel mounted controls
  • Consolidates multiple control heads into one easy-to-operate tuning control
  • High-Resolution, color AMLCD display
  • Controls for VHF COM, VOR/ILS navigation, DME, ADF, ATC Transponder, and TCAS systems
  • Allows up to 12 pilot-settable preset frequencies for NAV, COM and ADF as well as rapid access to Com Frequency 121.5 and ATC 7700
  • When interfaced to a Universal Super FMS, the FMS will function as a back-up tuning source, as well as providing the RCU with up to six suggested frequencies
  • Supports the Commercial Standards bus as well as ARINC-429 interface standards
  • Bezel Controls: Frequency Tuning Selector Knob; 8 Line select keys; Active; Previous; Next; Top; PreSet; Cross Tune; DME Hold; Detail; Ident; Bright/Dim; Emergency (guarded keys automatically load presets for COMM to 121.5 & Transponder to Code 7700)



SPECIFICATIONS
Bezel Size: 3.74" H x 5.74" W x 7.06" D Weight: 5.1 lbs
Mounting: DZUS Color: Gray or Black
Radio Interfaces: Comm (VHF), NAV (VOR, ILS), DME, ADF, Transponder, TCAS I/O Formats: ARINC 429, CSDB
Cooling: Integral fans, cold wall construction Input Power: 28 VDC standard
Lighting: 5V or 28V Power Consumption: 36 Watts
FAA TSO/ETSO: C113 Airborne Multipurpose Displays RTCA: DO-160D; DO-178B, Level C
Display Active Matrix Color LCD Resolution: 264 x 504 pixels, 124.5 cgpi
Viewing Angle: ±60° Horizontal; +35° / -10° Vertical
Part Number: Description:
4120-000-01 Radio Control Unit , Gray
4120-000-02 Radio Control Unit , Black



4120-000-01
- Radio Control Unit (Gray)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
4120-000-02
- Radio Control Unit (Black)

NSN: 5821-01-554-2503

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
4120-000-03
- Radio Control Unit (RCU), Heli 429 CSDB, Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
4120-000-06
- Radio Control Unit (RCU), NVG, Black
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
4120-000-07
- Radio Control Unit (RCU), Heli 429 CSDB, NVG, Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
4120-000-08
- Radio Control Unit (RCU), Heli 429 CSDB, NVG, Blac
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
