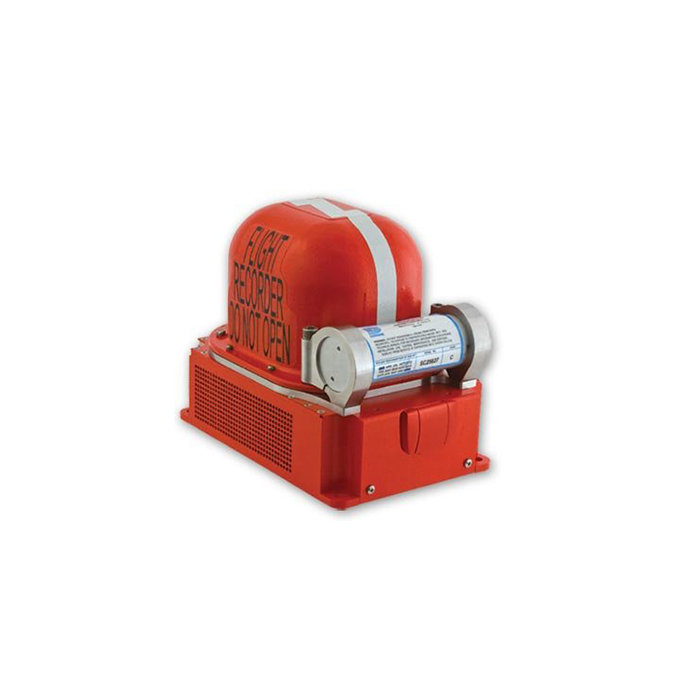

Picture of product FDR-25

Part #:

Model: FDR-25

OEM:

Universal Avionics

Desc:

Flight Data Recorder

Part Number :
Universal Avionics Systems Corporation

FDR-25
FEATURES
  • Flight Data Recorder (FDR)
  • Solid-State flash memory
  • Lightest CVFDR combo solution available
  • Internal Recorder Independent Power Supply (RIPS*) Option
  • Meets ED-112
  • No internal batteries to maintain
  • Provides 25 hours of flight data recording and interfaces with data downloader tools to allow quick download of data
  • Features an Ethernet interface for on-aircraft data downloading
  • RIPS* optional backup power allows the CVFDR to record data for 10 minutes after power failure
  • Recording Time:
    • 120 minutes of cockpit voice and ambient audio
    • 25 hours of flight data (minimum)
    • 120 minutes of data link messaging
    • No requirement for periodic maintenance (excluding ULB)
  • ARINC 757 Compatible Recorded Inputs:
    • 3 crew microphones
    • 1 area microphone
  • HELICOPTER ROTOR SPEED
  • Datalink ARINC 758
  • Bulk Erase allowed with parking brake in place
  • ARINC 717 flight data recording
  • Single control unit for CVR & FDR functionality
  • PC-based ramp testing/diagnostic
  • Manufacturer 2-year warranty
  • CVFDR meets the following certifications:
    • TSO-C123b, CVR Systems
    • TSO-C124b, FDR Systems
    • TSO-C155, RIPS*
    • TSO-C177, Data Link Recorder Systems
    • EUROCAE ED-112

*Recorder Independent Power Supply (RIPS) is available ONLY on Select Units. See the Part Number Chart below for further details.

SPECIFICATIONS
Dimensions: 6.1" H x 4.9" W x 8" D Weight: 8.68 lbs w/RIPS 7.90 lbs w/out RIPS
Power: 28 Vdc / 115 Vac Mounting: Circular connector, bolt-down mount
Part Number FDR Description:
1607-00-00 FDR-25, Baseline FDR
8SC5009-001 Bombardier Part Number





1607-00-00
- Flight Data Recorder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
1607-00-10
- Flight Data Recorder, Novega ULB
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
