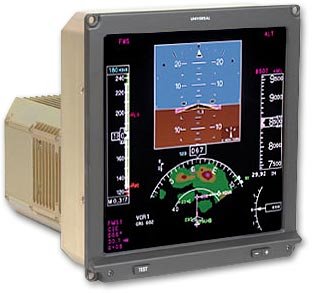

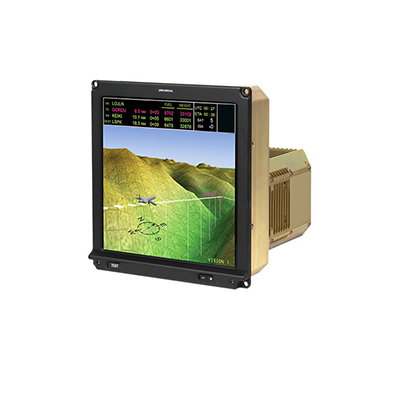

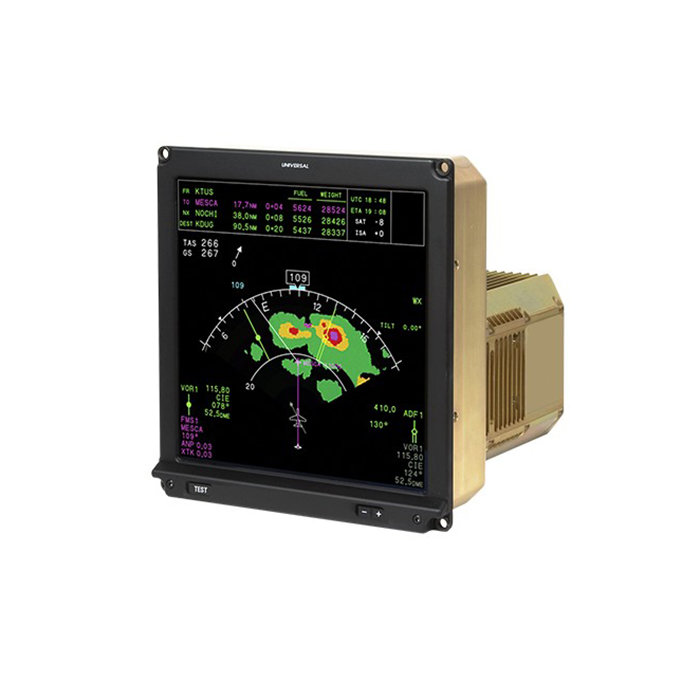

Picture of product EFI-890R

Part #:

Model: EFI-890R

OEM:

Universal Avionics

Desc:

PFD/ND Display

Part Number :
Universal Avionics Systems Corporation

EFI-890R
FEATURES
  • Advanced Electronic Flight Instrument for Flightdeck Modernization
  • Designed specifically for the retrofit market
  • Optimally sized featuring a lightweight, compact housing
  • Solid state design, fan forced cold wall construction
  • Leading-Edge Technology
  • High Definition AMLCD Display
  • 8.9" Diagonal Display
  • Superb Sunlight Readability
  • Versatile Retrofit Applications
  • Innovative presentation symbology
  • Extremely wide horizontal and vertical viewing angles are accommodated
  • PFD displays flight guidance, airspeed, vertical speed, altitude and heading, along with every bug, marker and other detail you desire over a full-screen ADI display
  • Multiple optional display formats are pilot selectable including Vision-1
  • In composite mode, the PFD adds Map or HSI displays in 360° and 120° arc formats along with information/imagery from numerous associated interfaced systems
  • Navigation Display (ND) is available for Map and HSI views, Vision-1 Synthetic Vision, TAWS, check lists & electronic documents, charts, UniLink Data/Weather Graphics, WSI Weather, weather radar, and video from onboard cameras
  • Navigation Progress Data Block, in the upper portion of the screen, is provided for most ND modes
  • Progress bar provides information pertinent to the intended pat of flight
  • PFD & ND displays meet FAA requirements for Part 23 & 25 aircraft
  • "Smart" displays incorporate internal signal conversion and data processing, which allows them to accommodate direct inputs from a multitude of analog and digital aircraft systems from autopilots and flight directors to radars & TAWS
  • Eliminates the cost of replacing existing systems
  • Also eliminates the need for additional external symbol generators
  • Extensive built-in self-diagnostic system testing
  • Configuration options of 2, 3 and 4 unit suites
  • Low profile back-end packaging allows for the display to be mounted high in the panel for unobstructed visibility
  • Optional array of standard DZUS control panels support 2, 3, and 4 display configurations with dedicated/shared controls - several variations are available (Not Included with EFI-890R)
  • Optional Data Concentrator Unit (DCU) is available to accommodate expanded I/O and translation/concentration capabilities in highly complex architectures (Not Included with EFI-890R)

INPUT/OUTPUTS
  • 6 ARINC 429 input ports (4 for external use)
  • 2 ARINC 429 output ports
  • 2 ARINC 708 input ports or 1 RDR-4 & 1 A708
  • 5 CSDB input ports
  • 2 CSDB output ports
  • 3 input / 1 output Manchester bus ports
  • 4 ARINC 407 Synchro inputs with 2 ref inputs
  • AC analog outputs to support Course Error & Hdg Error outputs to an analog autopilot
  • 2 Diff DC and 2 Single end DC outputs
  • 15 DC analog inputs
  • 14 +28V / Open discrete inputs
  • 2 VGA input ports
  • Discrete / Opto-encoder controller inputs
SPECIFICATIONS
Bezel Size: 7.84" H x 7.42" W Image Size: 6.3" H x 6.3" W (8.9" Diagonal)
Depth: 9.79" (back of bezel to rear of connector) Weight: 12 lbs
Color: Gray or Black Mounting: 4 point corner bolt-mounted from front
Display: Active Matrix Color LCD Viewing Angle: ±60° Horizontal, +45° /-10° Vertical
Resolution: 780 x 780 124.5 CGPI Configuration Module: EEPROM harness module for installation configuration
Cooling: Integral fans; cold wall construction Power Input: 28 VDC standard
Lighting: 5V or 28V Power Consumption: 105 Watts
FAA TSO / ETSO: C113 Airborne Multipurpose Display RTCA Documents: DO-160D; DO-178B, Level A
Part Number EFI Description:
8904-23533-01 EFI-890R, Dual Video, VGA/VGA, Gray
8904-23533-02 EFI-890R, Dual Video, VGA/VGA, Black
8904-35533-01 EFI-890R, X-Video, Dual Video, VGA/VGA, Gray
8904-35533-02 EFI-890R, X-Video, Dual Video, VGA/VGA, Black



8904-23533-01
- PFD/ND Display
Price Condition Status
REQUEST NEW INSTALL ONLY
REQUEST SV INSTALL ONLY
8904-23533-02
- PFD/ND Display

NSN: 7025-01-552-7957

Price Condition Status
REQUEST NEW INSTALL ONLY
REQUEST SV INSTALL ONLY
8904-35533-01
- Electronic Flight Instrument, X-Video, Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV OUTRIGHT REQUEST LEAD TIME
8904-35533-02
- Electronic Flight Instrument
Price Condition Status
REQUEST NEW INSTALL ONLY
8904-35533-05
- Electronic Flight Instrument
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
8904-35533-06
- Electronic Flight Instrument, X-Vidio, NVG, Black
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
