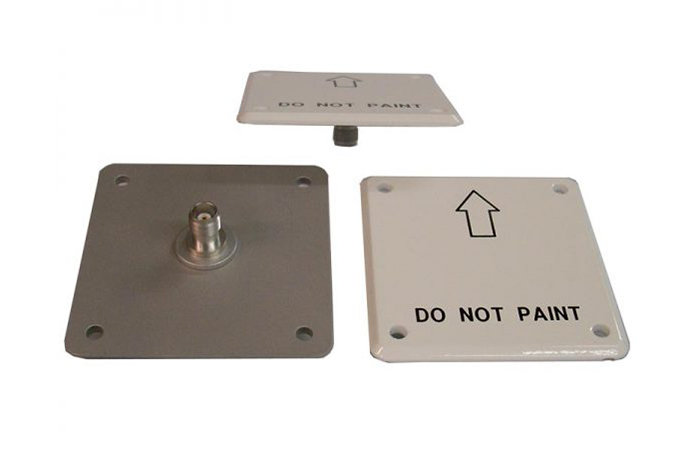

Picture of product ADS43010-1A

Part #: ADS43010(-1A)

Model: ADS43010-1A

OEM:

UB Corp

Part Number :
Image result for UB CORP LOGO

ADS43010(-1A)

DESGRIPTION
  • The UB Type ADS43010(-XXX) series of radar altimeter antennas were designed to replace the horn series antennas
  • Has FAA TSO C87 certification on ADS43010(-XXX) series of radar altimeter antennas
  • Higher Temperature Operation
  • Smaller and Lighter
  • Ease of Installation
  • Easily Contoured or Shaped

SPECIFICATIONS
(LOW) FREQUENCY RANGE: 4.200 GHz (HIGH) FREEQUENCY RANGE: 4.400 GHz
vswr: 1.8:1 Max; 1.1:0 typical at 4.3 GHz gain:  > 10 dbi Min
MOUNTING HOLES: .218/.219 diameter with 100 degree csk mounting holes Connector: TNC Female
Beam width: E Plane 60°± 5°, H Plane 50°± 5° power heading: 1.0 KW Peak
side lobes <30db typical isolation: 80 db at 16" spacing
impedance: 50 Ohms operating temperature: 300 °F+
ENVIRONMENT: MIL-E-5400, MIL-E-5272C, FAA TSO-C87 WEIGHT: 4 Ounces Max
Finish radome and edge: White, polyurethane enamel finish back surface: Conversion Coat
Part Number Description
ads43010-1a Radar Altimeter Antenna



ADS43010(-1A)
- Radar Altimeter Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
