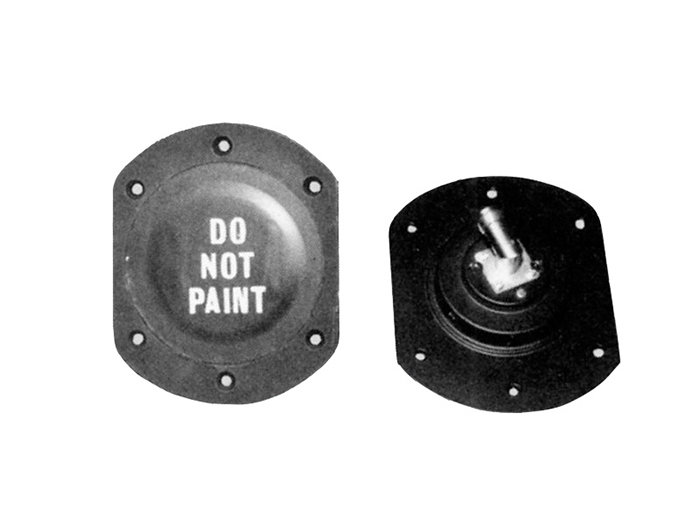

Picture of product AS-1233/APN-141(V)

Part #: AD43009-1

Model: AS-1233/APN-141(V)

NSN:

5841-00-019-8501

OEM:

UB Corp

Part Number :
Image result for UB CORP LOGO

RADAR ALTIMETER ANTENNA

DESCRIPTION
  • The AD43009-1 is a flush mount antenna designed for altimetry use with the AN/APN-141 radar altimeter.
  • It is a cavity-back, slot-fed device and is designed to withstand harsh environmental conditions including high temperatures.



SPECIFICATIONS

(HIGH) FREQUENCY rANGE : 4.325 (LOW) FREQUENCY RANGE: 4.275
FREQUENCY: 4275 to 4325 MHz VSWR: 1.5:1 Max
Gain: +8.5 dbi Polarization: Linear
Power: 1 Kw Peak IMPEADANCE: 50 Ohms
weight: 4 Onces Connectors: TNC
FINISH: Flat Black altitude: 75,000 Feet+
temperature -56°C to +127°C ENVIRONMENT: MIL-E-5272



Part Number Description
AD43009-1 Radar Altimeter Antenna





AD43009-1
- Radar Altimeter Antenna

NSN: 5841-00-019-8501

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
