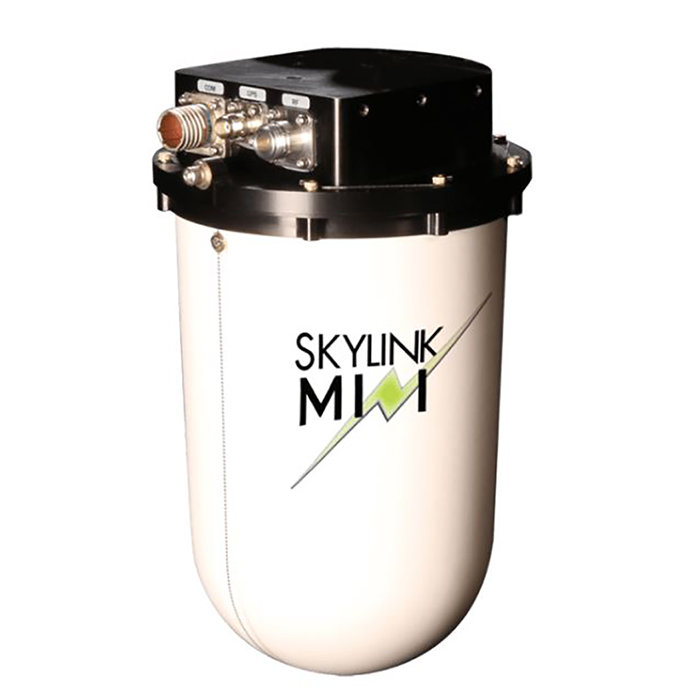

Picture of product SkyLink Mini II

Part #: SL-MINI2-4965-CPL-01

Model: SkyLink Mini II

OEM:

Troll Systems Corp.

Part Number :

THE DATA LINK EXPERTS



SKYLINK MINI

FEATURES

  • SkyLink is a lightweight, high-performance tracking antenna
  • Radio agnostic
  • Mini II provides single, dual-band or dual-polarized models to support long-range
  • High-bit-rate communications
  • Multiple Input Multiple Output MIMO
  • DO-160 Certified
  • Self-Calibrating
  • Automatic locating and tracking
  • Simultaneous dual-frequency or dual-polarization
  • Maximize bit-rate and range
  • Improve reliability
  • Precision INS / GPS embedded
  • 1.2 GHz to 18 GHz
  • Operational in GPS denied environments
  • Resists jamming and interference
  • Improves spectrum efficiency
  • Reuse spectrum even in saturated RF environments
  • Supports MANET/MIMO systems
  • SL-MINI2-4965-CPL-01



SPECIFICATIONS
DIMENSIONS 6.09” (15.5 cm) L & W x 10.73” (27.5 cm) H FrONT AREA: 54 in2
WEIGHT: < 5 lbs (2.27 kg.) excluding mounting bracket Rated to: 330 Knots
Drag: Dovetail 23 lbs @ 120 knots Flush Mount Input Voltage: 18-32 VDC
Input Current: 1A nominal Azimuth Steering: Continuous rotation, 100°/second (+/- 0.1° accuracy)
Elevation Steering: Max -90° to +30°; 120° Total - depending on configuration Control: Ethernet or RS-485/422/232 control interface
Part Number: Description:
SL-MINI2-4965-CPL-01 Tri-Band Comm Antenna



SL-MINI2-4965-CPL-01
- High Gain Airborne Tracking Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
