Part #: 01788-0001

Model: TY96A

OEM:

Trig Avionics

Desc:

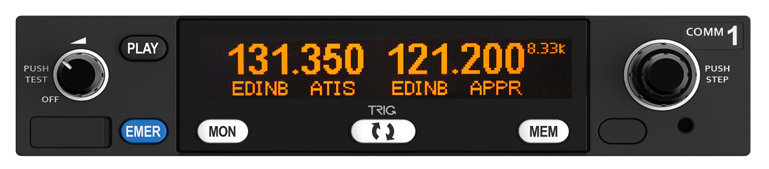

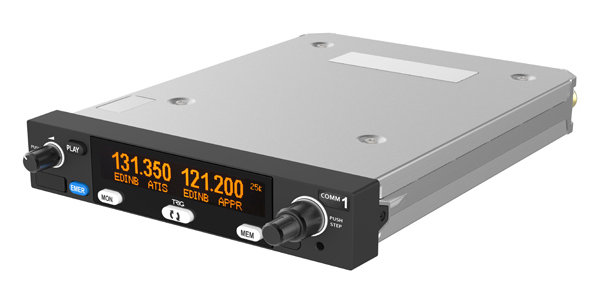

Panel Mount VHF Comm Radio, 10 Watt

Part Number :


TY96A
FEATURES
  • Slim-line – only 33mm high
  • 10 watt radio designed for general aviation and light sport applications
  • Bright, clear display / simple user interface
  • Unique ‘Push Step’ for faster tuning
  • Stereo music / two place intercom
  • Dual Watch – monitor two frequencies at the same time
  • ‘Say Again’ feature – allows playback of last transmission
  • Emergency button
  • Configurable airfield database – holds over 200 frequencies
  • USB port on facia – upload frequency database (CSV file)
  • No cooling fans or external cooling required
  • Ideal retro-fit for legacy radios
  • Designed and manufactured in the U.K.
SPECIFICATIONS
Dimensions: 1.3" H x 6.26" W x 10.63" L
9.05" Long (Installed depth in tray)
Weight: 2.09 lbs
Operating temperature: -20°C to +55°C Cooling: No fan required
Nominal Transmitter power: 10 Watt Typical Current Consumption in receive mode: at 14V - 175 mA
supply voltage: 11 - 33 Vdc compliance: ED-23C, ED-67, DO-186B, DO-178B Level B, DO-160G, DO-254 Level C
certification: ETSO 2C128, 2C169a, TSO-C128a, TSO-C169a type: Certified - 25 kHz
Part Number VHF Radio Description:
01788-0001 See description above



01788-0001
- Panel Mount VHF Comm Radio, 10 Watt
Price Condition Status
$2,380.00 NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
