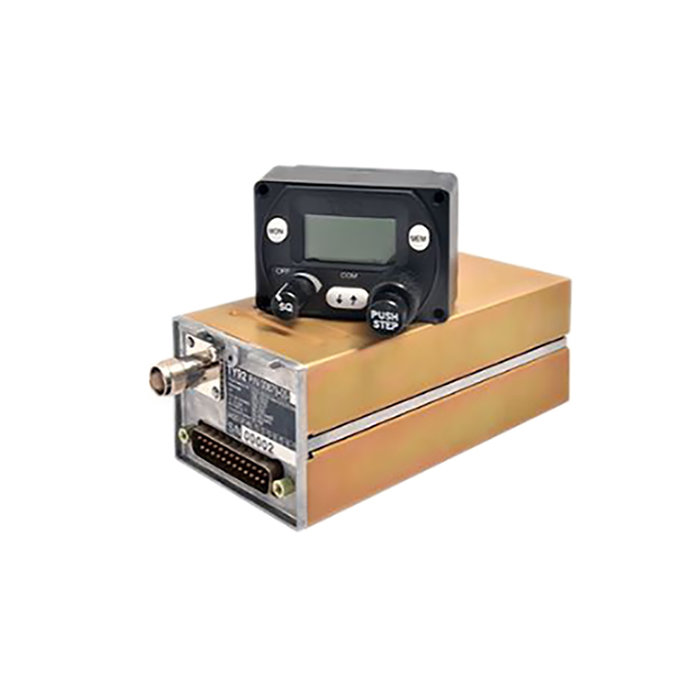

Picture of product TY91

Part #:

Model: TY91

OEM:

Trig Avionics

Desc:

VHF Radio System, 14V

Part Number :






FEATURES

  • VHF Radio, powered by 11 – 33 volts and has an output of 6 watts
  • Can be set at 25 kHz and 8.33 kHz
  • Receiver - Class C, Class E / Transmitter - Class 4, Class 6
  • 6 Watt power output
  • Compact and light weight
  • Take up minimal space and weight
  • Dual watch and two place intercom
  • Operation is simple, rapid frequency selection
  • Nine programmable memories
  • Can be battery operated
  • Full certified
  • Compliment Trig's TT21 and TT22 Mode S Transponders
  • Control head and separate radio hardware unit, can be purchased together or separate  (see part number chart below)
  • Flexible installation options due to 2 piece design
  • Can be mounted in a standard 2 1/4" hole or even smaller compact mount
  • Once fitted, the depth of the radio control head is less than 1 1/2" deep
  • Includes built in speaker amplifier, allowing headset free operation option
  • Crisp display, visible in all lighting conditions
  • TY91 is a lower powered model, ideal for light sport, ultra light, glider and balloon pilots and majority of GA users (See TY92 for a higher powered option)

Additional Information: View Trig TY91 / Becker AR 4201 Comparison Click Here to download the TY91 Installation Manual



SPECIFICATIONS
Type: Receiver - Class C, Class E; Transmitter - Class 4, Class 6 Certification: ETSO-2C169a, ETSO-2C128, TSO-C169a, TSO-C128a
Compliance: ED-23C, ED-67, DO-186B, DO-178B Level B, DO-160F, DO-254 Level C Supply Voltage: 11-33 Vdc
Typical Current Consumption: 200 mA receive 2A transmit @ 14V Nom.Transmitter Power: 6 W
Operating Temp: -40 to +70°C Radio; -20 to +70°C Controller Cooling: No fan required
Weight: 1.01 lbs Dimensions (Controller):  1.73"H x 2.48"W x 1.37"D w/out connector
Dimensions (Radio): 1.88" H x 2.59"W x 6.29"L Connector: D-Type connector fitted
Part Number: Description:
01079-00 Complete (Controller & Remote Unit)
00883-00 Remote Unit Only
00857-00 TC90 Controller (used in p/n 01079-00)



00883-00
- VHF Radio Remote Unit, 14V
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
01079-00
- VHF Radio System, 14V
Price Condition Status
$1,700.00 NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
