Part #: 01955-00-01

Model: TX56A

OEM:

Trig Avionics

Desc:

Nav/Comm Radio

Part Number :
trig manufacturer logo

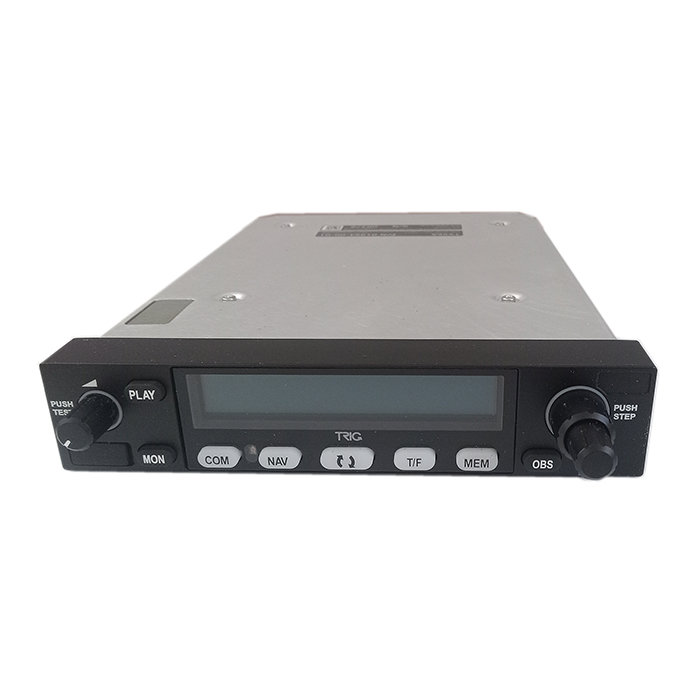

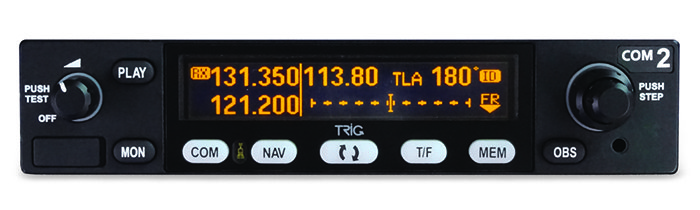

TX56A



FEATURES

  • Slimline – only 33mm high
  • Bright, clear display / simple user interface
  • Unique ‘Push Step’ for faster tuning
  • Dual Watch – monitor two com or two nav frequencies at the same time
  • Stereo music / two place intercom
  • ‘Say Again’ feature – allows playback of last transmission
  • USB port on facia – upload over 200 com and nav frequency database (CSV file)
  • VOR/ILS receiver – monitor a 2nd VOR
  • Built in VOR/LOC converter
  • Built in digital CDI
  • Built in 40 channel glideslope receiver
  • Highly efficient – no cooling fans or external cooling required
  • Ideal retro-fit for legacy radios – unit is same height as an SL30
  • Two year worldwide warranty
  • ETSO / TSO approved
  • Comprehensive FAA STC is available



SPECIFICATIONS

type: Certified 25 kHz COMPLIANCE: ED-23C, ED-67, DO-186B, DO-178B Level B, DO-160G, DO-254 Level C
CERTIFICATION: ETSO 2C128, 2C169a, 2C34f, ETSO 2C36f, 2C40c TSO-C128a, C169a, C34e, TSO-C36e, C40c TYPICAL current consumption in receive mode: at 14V – 265 mA
product Panel Dimensions: H 1.3" x W 6.26" x L 10.63" nominal Transmitter power: 10 W
operating Temperature: -20°C to +55°C Supply voltage (dc): 11 -33 V
wieght: 2.42lbs Cooling requirement: No fan required
Front Panel Dimensions: H 1.3" x W 6.26"
Part Number NAV/COM Description:
01955-00-01 See description above



01955-00-01
- Nav/Comm (25KHz, 760ch., 10W, 11-33V)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
