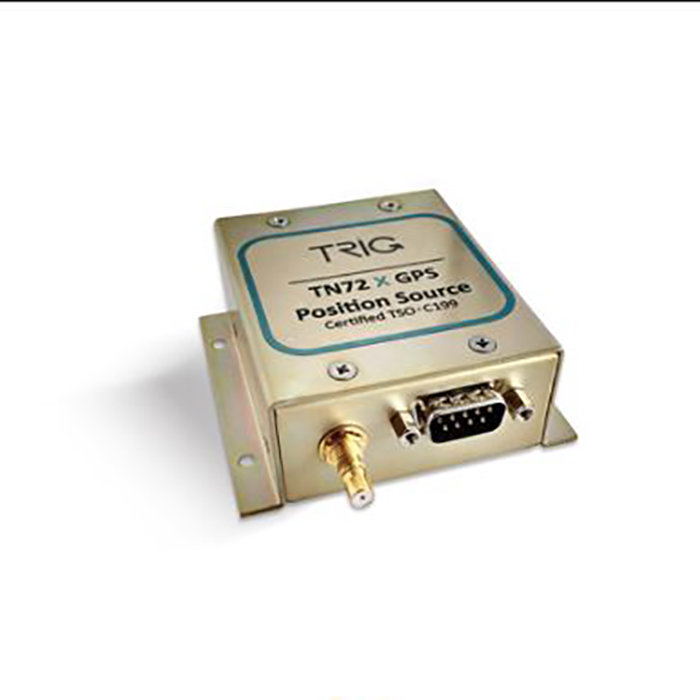

Picture of product TN72

Part #: 01685-00-01

Model: TN72

OEM:

Trig Avionics

Desc:

GPS Receiver

Part Number :




TN72
FEATURES
  • Simple ADS-B Out upgrade for all Trig transponders
  • Suitable for ‘voluntary’ use in both certified and uncertified aircraft (in Europe)
  • SABAS – supports EGNOS, MSAS, GAGAN and WAAS – Satellite Based Augmentation Systems
  • Meets FAA 2020 ADS-B rule for experimental, LSA and homebuilt aircraft / gliders in the U.S.
  • Safer – visible on all ADS-B In systems
  • Enables live tracking of aircraft (with suitable ADS-B In equipment)
  • Triggers traffic information services (TIS-B only available in U.S.)
  • Low cost and light weight
  • Two year world wide warranty





SPECIFICATIONS

Type: TABS (SBAS) Connector: GPS (power, ground and GPS data) – 9 way D type, Antenna – 5V phantom power – QMA male
Certification: TSO-C199 Class B Compliance: TSO-C199 Class B, DO-160G
Typical consumption (at 14v) at 14V – 0.1A Cooling: No fan required
Operating Temp: -40°C to + 70°C Dimensions (mm): H 30 x L 90 x W 63mm (W with base flange 80mm)
Weight: 110 grams / 3.8 ounces Dimensions (inches): H 1.2” x L 3.6” x W 2.5” (W with base flange 3.2”)
Part Number: Description:
01685-00-01 GPS Receiver



01685-00-01
- GPS Receiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
