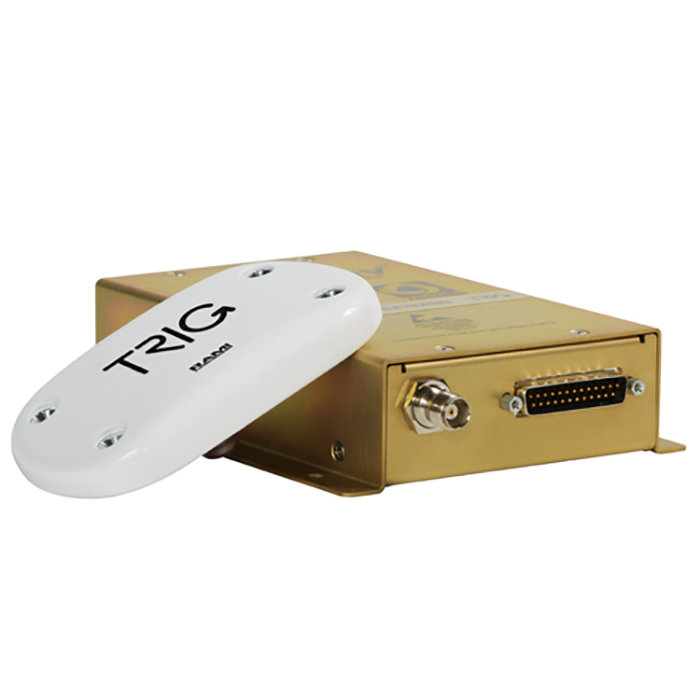

Picture of product TN70A

Part #: 02466-00

Model: TN70A

OEM:

Trig Avionics

Desc:

GPS Receiver w/ Antenna Kit

Part Number :



TN70A
FEATURES
  • TN70A is compatible with the Trig TT22 transponder — making installation simple and ADS-B compliant
  • Can be installed as a discrete GPS unit while leaving the existing panel equipment in place
  • WAAS GPS receiver – kit includes antenna
  • Meets TSO-C145 – compliant for 2020 ADS-B
  • Completes your ADS-B Out solution
  • Requires no panel space – easy to install
  • Compatible with any Trig transponder
  • Supports EGNOS, MSAS, GAGAN and WAAS – Satellite Based Augmentation Systems
  • Trig TN70A GPS Position Source kit includes the WAAS GPS receiver unit, TA70 WAAS antenna, and installation kit



SPECIFICATIONS

TN70A - WAAS GPS Specifications:
Type: GNSSU/GPS, SBAS/WAAS Supply Voltage: 9-32 V DC
Certification: TSO-C145c, Beta 1 Receiver Compliance: DO-229D, DO-178B Level C, DO-254 Level C, DO-160F
Typical current consumption: @ 14V Typical: 0.2A / Max: 0.3A Cooling: No fan required
Operating Temp: -55 to +70°C Dimensions: 1.6" H x 4.13" W x 6.5" L
Weight: 1.06 lbs
TN70A - waas gps Antenna Specifications:
type: ARINC 743A WAAS GPS antenna compliance: DO-301, DO-160
Certification: TSO C190 OPerating TEMP: -55 to +70°C
weight: 0.62 lbs dimensions: 0.73" H x 3.0" W x 4.7" L
Part Number: Description:
02466-00 GPS Receiver w/ Antenna Kit



02466-00
- GPS Receiver w/ Antenna Kit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
