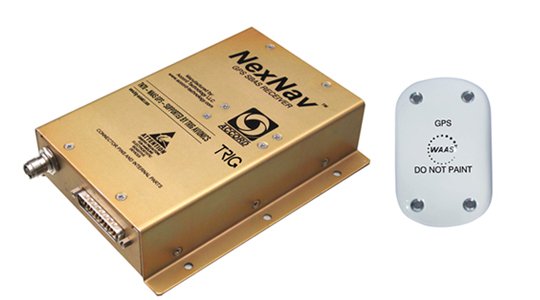

Picture of product TN70

Part #: 01381-00

Model: TN70

NSN:

4720-12-344-3720

OEM:

Trig Avionics

Desc:

WAAS GPS Receiver & Antenna

Part Number :



TN70
FEATURES
  • WAAS GPS receiver – kit includes antenna
  • Companion product for Trig Mode S / ADS-B Transponders
  • Fully compliant and 2020 ready
  • Completes your ADS-B Out solution
  • Requires no panel space – easy to install
  • Compatible with any Trig transponder



SPECIFICATIONS

TN70 - WAAS GPS Specifications:
Type: GNSSU/GPS, SBAS/WAAS Supply Voltage: 9-32 V DC
Certification: TSO-C145c, Beta 1 Receiver Compliance: DO-229D, DO-178B Level C, DO-254 Level C, DO-160F
Typical current consumption: @ 14V Typical: 0.2A / Max: 0.3A Cooling: No fan required
Operating Temp: -55 to +70°C Dimensions: 1.6" H x 4.13" W x 6.5" L
Weight: 1.06 lbs
TN70 - waas gps Antenna Specifications:
type: ARINC 743A WAAS GPS antenna compliance: DO-301, DO-160
Certification: TSO C190 OPerating TEMP: -55 to +70°C
weight: 0.62 lbs dimensions: 0.73" H x 3.0" W x 4.7" L
Part Number: Description:
01381-00 WAAS GPS Receiver & Antenna




01381-00
- WAAS GPS Receiver and Antenna

NSN: 4720-12-344-3720

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
