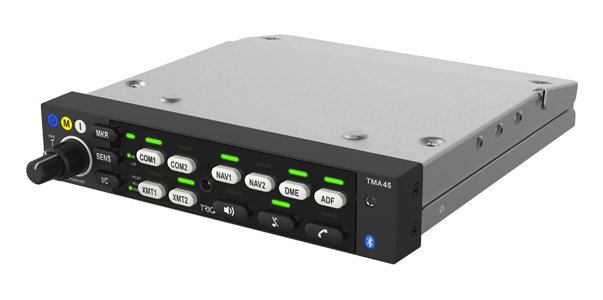

Picture of product TMA45

Part #:

Model: TMA45

OEM:

Trig Avionics

Desc:

Audio Panel

Part Number :


TMA45
FEATURES
  • Feature rich stereo panel – supports 2 to 6 seats
  • Great quality audio, stereo music and mobile phone support via Bluetooth
  • Bluetooth technology – wireless use of mobile phones and music
  • Front panel jack socket (for portable electronic device)
  • Superior audio performance from:
    • TDNR – Trig Digital Noise Reduction
    • TAM – Trig Active Mute
  • ‘Better by Design’ – logical and easy to use interface
  • Marker beacon receiver – with indicators
  • Designed to fit in a standard avionics rack, 2 connectors and is a plug & play retrofit for GMA340
  • EASA and TSO Certified
SPECIFICATIONS
Dimensions: 6.25" W x 1.3" H x 7.75" D Weight: 1.3lb
Temperature range: -20°C to +55°C operating
-40°C to +85°C storage
Supply voltage: 11 -33 VDC
Speaker output: 3 Watts @ 14 VDC / 10 Watts @ 28 VDC Headphone output: 38 mW
headphone impedance: 150 - 1000 Ω Music frequencey response: (-3 dB) 20 Hz - 20 kHz
Mic frequency response: (-3 dB) 350 Hz - 6000 Hz TSO: TSO-C50c, TSO-C35d
Part Number audio panel Description:
01802-0001 See description above



01802-00-01
- Audio Panel
Price Condition Status
$1,595.00 NEW OUTRIGHT REQUEST LEAD TIME
01802-0001
- Audio Panel
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
