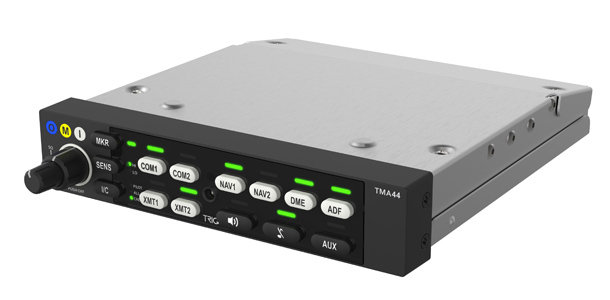

Picture of product TMA44
Part #: 01801-00-01
Model: TMA44
Desc: Audio Panel
OEM: Trig Avionics
Part Number :
Price Condition Status More Info
$1,446.00 NEW OUTRIGHT REQUEST LEAD TIME
Send RFQ
* Price & Availability valid as of 04/04/25 0:01:04 EDT *

Need Repair? - Submit A Request



TMA44
FEATURES
  • For aircraft owners looking for a value panel that covers general aviation requirements
  • Great value mono panel – supports 2 to 4 seats with independent control of crew & passenger audio
  • Simple control of all navigation, communication and entertainment choices
  • Features pilots need to operate in both IFR & VFR flight while providing mono entertainment options
  • Audio performance includes ‘smooth fade’
  • ‘Better by Design’ – logical and easy to use interface
  • Marker beacon receiver – with indicators
  • EASA and TSO Certified
  • 44 pin connector allowing retrofit with older audio panels and designed to fit into a standard avionics rack
  • Switched inputs for Nav 1, Nav 2, ADF, Aux, DME
  • Two year worldwide warranty
  • TSO Compliant
  • Bluetooth option available, see TMA45 model
SPECIFICATIONS
Dimensions: 6.25" W x 1.3" H x 7.75" D Weight: 1.3lb
Temperature range: -20°C to +55°C operating
-40°C to +85°C storage
Supply voltage: 11 -33 VDC
Speaker output: 3 Watts @ 14 VDC / 10 Watts @ 28 VDC Headphone output: 45 mW
headphone impedance: 150 - 1000 Ω Music frequencey response: (-3 dB) 200 Hz - 15 kHz
Mic frequency response: (-3 dB) 350 Hz - 6000 Hz TSO: TSO-C50c, TSO-C35d
Part Number audio panel Description:
01801-0001 See description above



01801-00-01
- Audio Panel
Price Condition Status
$1,446.00 NEW OUTRIGHT REQUEST LEAD TIME
