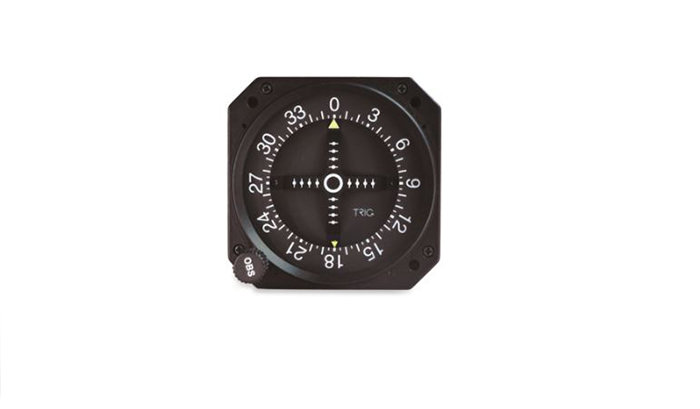

Picture of product TI106

Part #: 01913-00

Model: TI106

OEM:

Trig Avionics

Desc:

Course Deviation Indicator

Part Number :



TI106 CDI



FEATURES

  • Trig’s TI106 is a 3″ Course Deviation Indicator
  • Solid state actuators technology provide dependable navigational indications
  • FAA TSO-C34e certified CDI
  • TI106 will support most existing Nav/Com equipment
  • Superior LED lighting
  • Optimised for use with Trig Nav/Com units
  • Lightweight and simple to install
  • Ideal as a retro-fit CDI option



SPECIFICATIONS

Dimensions: H 3.25″ x 3.25″ x 4.75″ Weight: 0.59kg
Temperature : -55°C to + 70°C Certification: ETSo C34e, C36e, 2C40c, TSO-C34e, C36e, C40c
Compliance: DO-160B/G Supply voltage: 12-32 VDC
Typical consumption: 0.2Amps Nominal Transmitter Power: N/A
Cooling requirement: N/A Front panel dimensions (mm): 76mm
Type: Certified Front panel dimensions: Front panel dimensions
Part Number Description:
01913-00 Course Deviation Indicator



01913-00
- Course Deviation Indicator
Price Condition Status
$2,678.00 NEW OUTRIGHT REQUEST LEAD TIME
