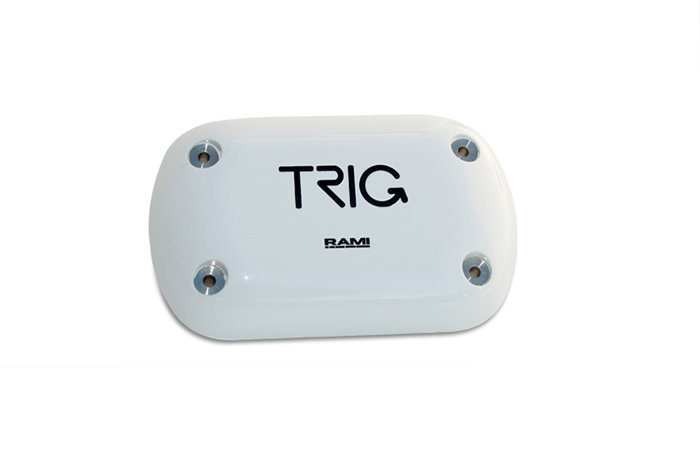

Picture of product TA70

Part #: 01740-00

Model: TA70

OEM:

Trig Avionics

Desc:

Certified GPS Antenna

Part Number :



TA70



FEATURES

  • TSO C-190 certified antenna
  • Optimised for use with Trig GPS units
  • Compliant for 2020 ADS-B Out
  • Lightweight and simple to install
  • Superior gasket for a weather tight seal
  • Ideal as a retro-fit antenna option
  • Fully compliant with the latest FAA 2020 ADS-B requirements



SPECIFICATIONS

Dimensions: H 3.25″ x 3.25″ x 4.75″ Weight: 0.59kg
Temperature : -55°C to + 70°C Certification: TS0-C190
Compliance: DO-301, DO-160G Supply voltage: 4.5-14.5 VDC
Typical consumption: 40mA Typ / 60mA max Nominal Transmitter Power: N/A
Cooling requirement: N/A Type: WAAS GPS antenna





Part Number Description:
01740-00 Certified GPS Antenna



01740-00
- Certified GPS Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
