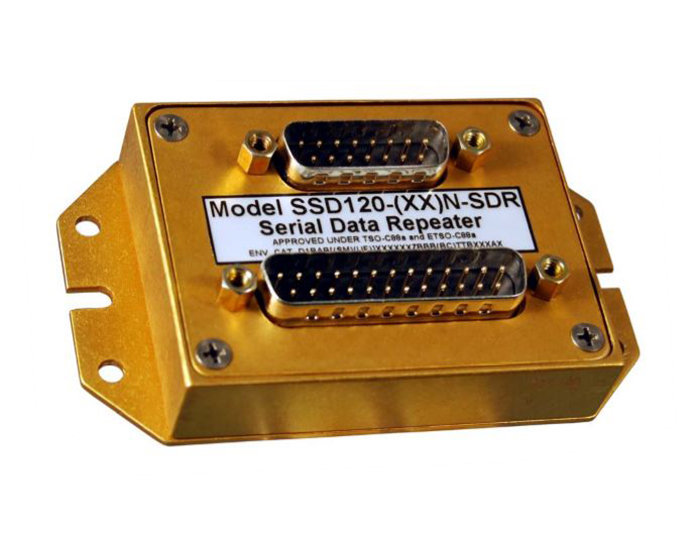

Picture of product SSD120-100

Part #: SSD120-100N-SDR

Model: SSD120-100

OEM:

Trans-Cal

Desc:

Solid State Serial Datat Repeater

Part Number :

SSD120-100N-SDR

DESCRIPTION

  • Approved under FAA TSO-C88a and EASA ETSO-C88a, the Model SSD120- 100N-SDR is an all solid-state Serial Data Repeater
  • RS232 has become a popular data format for transmitting altitude data in the aircraft; however the RS232 standard allows only one receiver per output, and typical avionics installations require multiple altitude inputs
  • The SSD120-100N-SDR is designed to fill the need for additional altitude data distribution in the RS232 format
  • This device will accept two RS232 compliant data inputs and optionally, one RS485 input
  • The input data may be routed to a fan out of up to ten RS232 compliant output ports, and these ports may be configured to transmit as one group of ten or two groups of five
  • Power, ground and data I/O are provided on an industry standard 25-pin D-Subminiature connector, while data distribution is controlled by strapping on the 15 pin D-Subminiature connector
  • Tested and conforming to MIL-STD-704E and RTCA DO-160E the SSD120- 100N-SDR is a low power device operating at +10 to 33Vdc and requiring just 70mA max
  • This device provides a simple and robust means of transmitting serial altitude data to multiple aircraft systems
SPECIFICATIONS
OPERATING VOLTAGE +10° to 33VDC
Operating Temperature: -40° to +70°C
OPERATING POWER REQUIREMENTS: 0.065 Amps
storage temperature (non operating): -55° to +85°C
humidity: 95% Non-Condensing at 50°C
operating altitude range: -1200 to +100,000 feet
weight: 6 oz.



















SSD120-100N-SDR
- Serial Data Repeater/RS232
