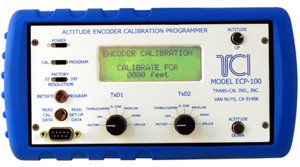

Picture of product ECP100

Part #: ECP-100

Model: ECP100

NSN:

5120-01-650-3747

OEM:

Trans-Cal

Desc:

Encoder Programmer

Part Number :


ECP-100
FEATURES
  • Altitude Encoder Calibration Programmer
  • Provides serial altitude data in the aircraft for a variety of systems
  • Small, rugged housing with protective boot
  • Connects to all Trans-Cal encoders with serial ports
  • Configures altitude encoder RS-232 Ports to transmit identical or separate data protocols (message & baud rate) to match your application
  • Powered via battery or AC adapter
  • Can transmit two different serial data protocols simultaneously, and also allow digital adjustment of the calibration curve



SPECIFICATIONS
Dimensions: 7.5" x 4.0" x 1.5" without protective boot 8.8" x 4.6" x 1.8" with protective boot Weight: 12 oz.
Operating Voltage: +10 to +33Vdc Operating Temperature: -20° to +70°C
Part NumberEncoder Programmer description:
ECP-100 see details above



7.5" x 4.0" x 1.5" without protective boot 8.8" x 4.6" x 1.8" with protective boot
ECP-100
- Encoder Programmer

NSN: 5120-01-650-3747
