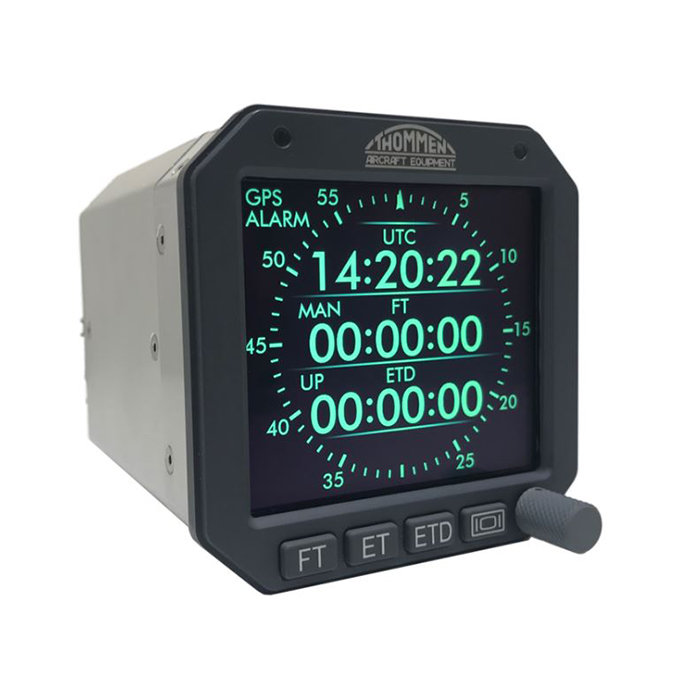

Picture of product Stratotimer

Part #: ST3-1001

Model: Stratotimer

OEM:

Thommen

Desc:

Advanced Multifunction Aircraft Chronograph

Part Number :
Logo Thommen Aircraft Equipment

Statotimer 3ATI

FEATURES
  • S-Video input
  • GPS synchronization
  • High-resolution Digital TFT display
  • Best-in-class sunlight readability
  • Digital time, sweep second hand
  • Ambient light or manual dimming
  • Programmable alarms
  • Master / Slave synchronization
  • NVIS compatible
  • Display can be dimmed manually or set to use ambient light
  • Night vision system compatibility ( NVIS Green A )
  • Single user-friendly knob sets the desired time or date
  • Can be synchronized with GPS via its ARINC 429 interface
  • Video display includes options for pilots to view door and hatch positions
  • Provides the clock and video capability in the same instrument reducing weight
  • NVIS, rugged casing, DO-160G tested
  • No inherent maintenance requirement
  • Master/Slave functionality
  • UTC/Chrono-coupled sweep second
  • Rugged design
  • Simultaneous display of all relevant times

SPECIFICATIONS
WEIGHT: 1.19 lbs.  dimensions: 3.26 x 3.26 x 4.72 inches (82.8 x 82.8 x 120 mm)
display dimensions: 64 x 57.2 mm (2.52 x 2.25 inches) material: Aluminum
resolution: 540px x 480px viewing: 80% angle from each side
mounting: ARINC 408A, 3ATI square clamp, 1 inch deep compliance: RTCA/DO178C DAL D, RTCA/DO254 DAL D, RTCA/DO160G
Part Number: Description:
st3-1001 Digital Onboard Time Management System



ST3-1001
- Digital Clock (3 ATI with Video Input)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
