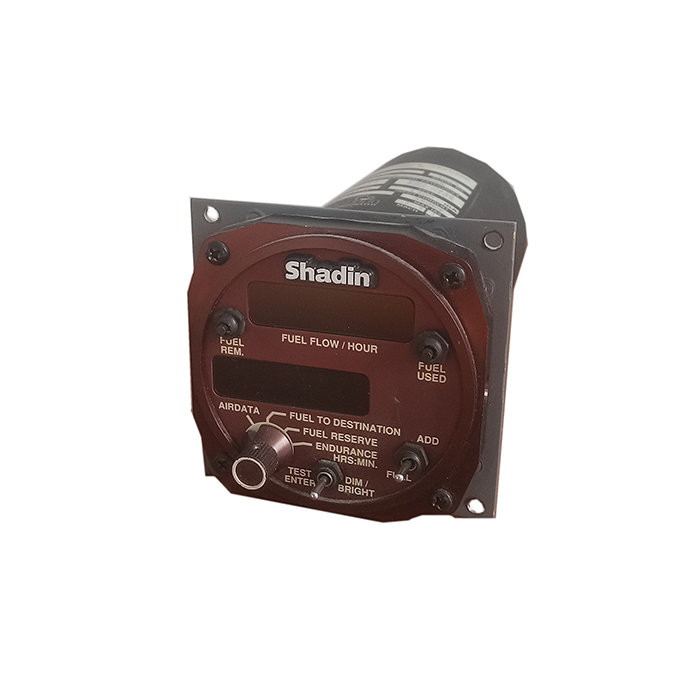

Picture of product DigiData

Part #: 912802

Model: DigiData

OEM:

Shadin

Desc:

Fuel/Airdata Computer

Part Number :



DigiData



FEATURES

  • Fuel/Airdata System displaying fuel flow information and NAV information from interface with existing GPS or LORAN receivers
  • Panel mounted version of ADC-200 Fuel/Airdata computer
  • Provides E-6B data such as pressure altitude, density altitude, outside and true air temperature, winds aloft, wind component (speed & direction), indicated and true airspeed, ground speed, Mach, and instantaneous vertical speed
  • Provides fuel flow functions suchas left and right fuel flow, fuel flow used, fuel remaining, fuel to and reserves at destination, range, cruise efficiency (nautical mileage), and endurance
  • Provides navigation data such as heading, ground track, and magnetic variation Note: Aircraft must be equipped with indicator with heading synchro (bootstrap) to obtain this data
  • Compatible with Bendix/King KLN-88 Loran and KLN-90/A/B GPS receivers
  • Compatible with IIMorrow 604,612,614,618 Loran units
  • Compatible with Trimble 2000,2000A,2100,3000,3100 GPS receivers
  • Compatible with all Northstar, Garmin, and Magellan GPS/Loran units
  • Selectable for single or twin aircraft configurations
  • Red dot matrix (LED) display
  • Available in Citation grey bezel color

PLEASE NOTE THAT PRICES MAY VARY DEPENDING ON AIRCRAFT TYPES AND CONFIGURATIONS Please indicate the following information when ordering or submitting quote request for exact pricing: - Aircraft year, make, model, and serial number? - Engine make, model, serial number, and either fuel injected or carburated? - Fuel displayed in gallons, pounds, or liters? - Type of fuel used: Avgas or Jet fuel? - GPS input type, make, and model? - Will original gauge be removed? - If aircraft has existing fuel flow sytem to be removed, advise part number and type of original transducer





SPECIFICATIONS

Weight: 22 oz. Size: 3.125" round x 6.5" deep
Temperature: -20 to +50C Power: 9-35 VDC, 1 watt nominal
Output Format: RS-422/RS-232, ARINC 429 (optional) Flow Rate: up to 450 GPH
Max Usable Fuel: 1800 gallons Accuracy: +-1%
TSO: C-106, C-44a Environmental: RTCA DO-160B
Software: RTCA DO-178A, Level II Input: pitot pressure, static pressure, OAT, heading synchro, fuel flow
Outputs: IAS, TAS, ground speed, Mach, P. Alt, D. Alt, OAT, TAT, wind aloft, wind component, fuel flow, fuel used, fuel remaining, cruise efficiency, endurance, L. fuel used, R. fuel used, IVS, heading, track, magnetic variation







Part Number Description
 912802 Fuel/Airdata Computer







912802
- Fuel/Airdata Computer
Price Condition Status
REQUEST AR OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

"As Removed" or condition "AR" parts are in the same condition as they were removed from an aircraft. The reasons for removal include aircraft upgrades, teardowns, or certain types of incidents. In most cases, AR parts have not been inspected or tested. They do not include airworthiness certification such as FAA Form 8130 or EASA Form 1. Southeast Aerospace encourages avionics in this condition to be tested and recertified before using in an aircraft.
