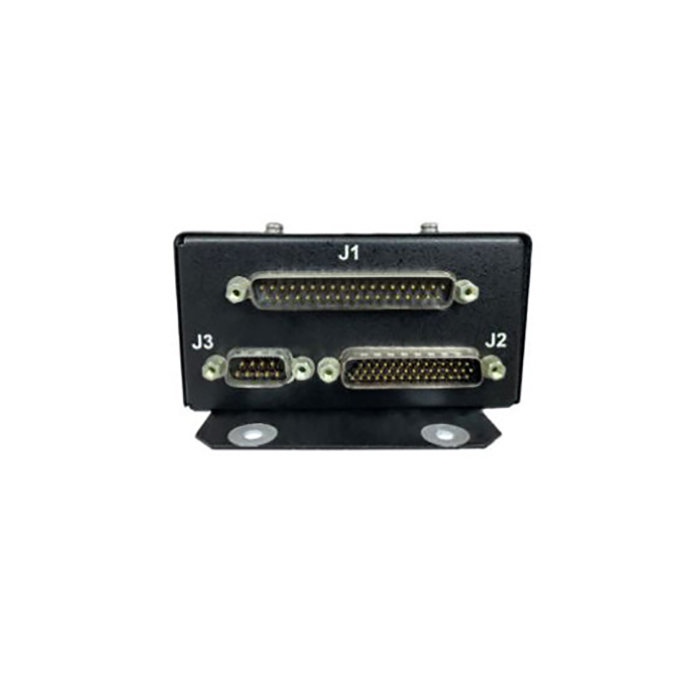

Picture of product AIS-380

Part #: 833811-30

Model: AIS-380

OEM:

Shadin

Desc:

DC Analog Fuel Flow Adapter

Part Number :
Image result for shadin avionics logo
AIS-380

DESCRIPTION
  • Two +12 VDC power supplies are available for powering fuel flow transducers
  • ARINC 429 inputs are forwarded to the ARINC 429 outputs
  • ARINC 429 speed (high or low) is configurable. Each ARINC 429 channel input and output speed is matched when configured, e.g.
  • ARINC 429 channel 1 input channel set for high speed results in
  • ARINC 429 channel 1 output set for high speed
  • Fuel Flow labels 244 (Total Fuel Flow) and 347 (Left and Right independent Fuel Flow based on SDI) are generated and output at an 8 Hz rate when configured for normal fuel flow format
  • Digital I/O
  • Analog I/O
  • Synchro Input
  • Discrete I/O
  • Frequency I/O

  • Heading, pitch, and roll synchro to ARINC 429
  • ADS-B data concentrator
  • ARINC 429 to analog output
  • Analog input to ARINC 429
  • Fuel flow pulse to ARINC 429 and serial
  • Radar altimeter integration and interface
  • Autopilot adapter/interface
  • Data Concentrator Unit (DCU)
  • Aircraft Interface Device (AID)
  • Aircraft Interface Unit (AIU)



SPECIFICATIONS

 DIMESIONS: 6.90”L x 4.24”W x 1.57”H WEIGHT: 0.7 lbs.
power supply voltage: +28VDC Nominal operating temperature: Temp: -40°C to +70°C
supply current: 100mA at +28VDC Protection: Not internally fused
mounting: 4 Screws (See Installation Drawing D833811-01), 4 Screws (See Installation Drawing D833811-30) mounting locations: 6.25”L x 2.00”W
inputs: Two Discrete Fuel Flow pulse/frequency signals,One RS-232 Serial Interface for Maintenance ,One RS-422 Serial Interface compatible to fuel flow parameters ,Two ARINC 429 High Speed or Low Speed signals with Air Data and Heading labels outputs: ARINC 429 label set described in section 1.4 forwarded from input, Two ARINC 429 High Speed or Low Speed signals Label 244 and 347, One RS-232 Serial Interface with fuel flow data, reference Table 3 for serial output formats
storage temperature: -55°C to +85°C operating ALTITUDE: (M833811-30): Up to 42,000 ft
ENVIRONMENTAL: (M833811-30) RTCA/DO-160F [A4X]BBB[R(B,B1) U2(F, F1)]EXXXXXZ[BXX]AZ[CC][RR]M[XXJ33]XXAX OUTPUTS: (M833811-30): One RS-232 Serial Interface with fuel flow data, reference Table 4 for serial output formats, Two ARINC 429 High Speed or Low Speed signals
INPUTS: (M833811-30): Two Analog signals – DC Fuel Flow, Accept analog inputs between -1.0 v and +30.0 volts, Negative voltages are recognized as 0.0 volts, Voltages greater than 10 volts are considered to be out of Range, DC Input 1 POS on DCFF pin 9 (signal) to DC Input 1 NEG on DCFF pin 15 (return), DC Input 2 POS on DCFF pin 4 (signal) to DC Input 2 NEG on DCFF pin 3 (return), One RS-232 Serial Interface for Maintenance, Two ARINC 429 High Speed or Low Speed signals with Air Data and Heading labels
Part Number: Description:
833811-00 AIS-380 Fuel Flow Adapter
833811-01 AIS-380 Fuel Flow Adapter
833811-30 AIS-380 Fuel Flow Adapter





833811-30
- DC Fuel Flow Adapter
Price Condition Status
$1,750.00 SV EXCHANGE IN WORK
$2,750.00 SV OUTRIGHT IN WORK
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
833811-01
- Fuel Flow Adapter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
