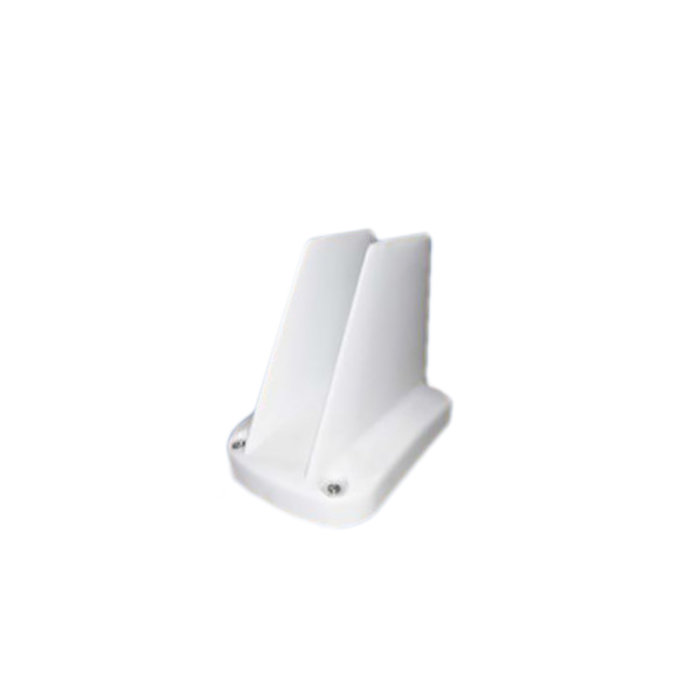

Picture of product S72-1750-32L

Part #: S72-1750-32L

NSN:

5985-01-645-4308

OEM:

Sensor Systems

Desc:

L-Band TCAD Antenna

Part Number :


S72-1750-32L



FEATURES

  • Traffic Collision Alert Device (TCADII) antenna
  • Low-profile dual blade antenna designed for mounting on the bottomo f the aircraft
  • Features a directional four-element array compatibe with the Avidyne TCADII system



SPECIFICATIONS

Frequency: 1030±1MHz 1090±3MHz VSWR:  ≤2.0:1(1030MHz) ≤2.3:1(1090MHz)
Power handling: 10Watts Polarization:  Vertical
Impedance: 50 ohms shock: 30G’s
height:  1.36in. Weight: 12 oz.
temperature: -55°C(-67°F)to+85°C(+185°F) Material: 6061-T6 AluminumAlloy/Thermoset Plastic
Finish: Skydrol Resistant Enamal Connector: TNC Female (2)
Vibration: 10G's Altitude: 50,000 ft.
Federal & Military Specs: FAATSO-C74c, DO-160C, MIL-D-5400H, MIL-STD-454 and MIL-STD-810C




Part Number: Description:
S72-1750-32l L-Band TCAD Antenna



S72-1750-32L
- L-Band TCAD Antenna

NSN: 5985-01-645-4308
