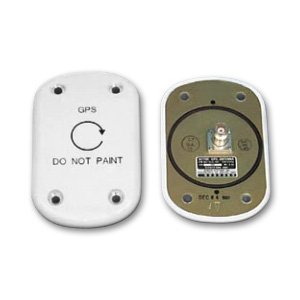

Picture of product S67-1575-52

Part #: S67-1575-52

OEM:

Sensor Systems

Desc:

GPS Antenna

Part Number :


S67-1575-52
FEATURES
  • GPS Antenna
  • Low profile with advanced radome design and material
  • Enhanced protection against rain, ice, and lightning strikes
  • Hermetically sealed
  • ARINC applications
  • Federal and Military Specs: FAA TSO C115a and C129. DO-160, MIL-STD-810, ARINC 743A, MIL-C-5541, MIL-E-5400



SPECIFICATIONS
Frequency: 1575.42 MHz VSWR: 2.0:1
Polarization: RHCP Impedance: 50 ohms
Antenna Gain (Typ): 3 dBic @ Zenith  Gain Coverage (min): -1.0 dBic   0°  ≤ θ ≤ 75° -2.5 dBic 75° < θ ≤ 80° -4.5 dBic 80° < θ ≤ 85° -7.5 dBic     θ = 90° @ Horizon
Gain (preamp): 26.0 dB Noise Figure: 2.5 dB
Power Handling: 1 watt  Voltage: +4 to 24 VDC
Current: 25 mA Lightning Protection: DC Grounded
Weight: 6 oz Dimensions: .55" H x 3.0" W x 4.70" L
Material:  6061-T6 aluminum / thermoset plastic  Finish:  Skydrol resistant enamel
Connector:  TNC  Temperature:  -67°F to +185°F
Altitude:  55,000 ft

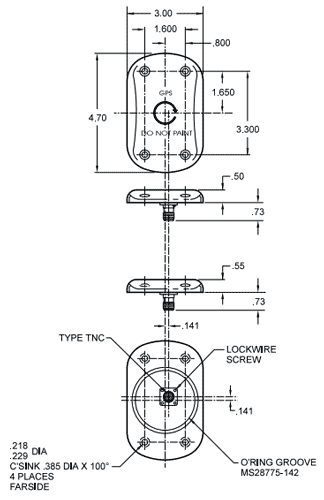

S67-1575-52 Diagram
Part NumberGPS Antenna Description:
S67-1575-16 Basic model, Height: .55", Weight: 5 oz
S67-1575-52 see details above
S67-1575-82 Same as above except 40.0 dB gain amplifier
S67-1575-38 Same as above except covers GPS/Glonass frequency Band



S67-1575-52
- GPS Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
