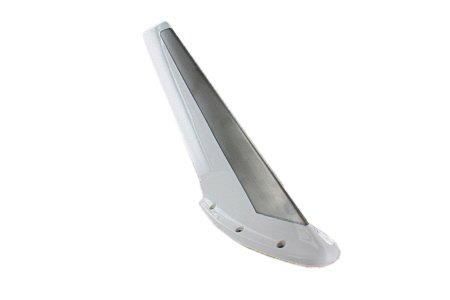

Picture of product S65828252

Part #: S65-8282-52

Model: S65828252

OEM:

Sensor Systems

Desc:

VHF Comm Antenna

Part Number :


S65-8282-52
FEATURES
  • VHF AM/FM Antenna
  • Designed for speeds up to Mach 2.0 with low drag
  • Designed for use with AN/ARC-186 or similar VHF/AM/FM transmitter at 30-88/108-152 MHz
  • Provides low VSWR over operating bands
  • Six-hole bolt pattern
  • Interchangeable with Collins 37R-2
  • Hermetically sealed
  • Designed for universal mounting
  • Ideal for antenna replacement in existing systems where dual-frequency antenna capable of handling 40 watts is required
  • Federal and Military Specs: FAA TSO C37b and C38b. MIL-STD-810, MIL-E-5400, MIL-A-7772 (ASG), MIL-A-9094, MIL-B-5087



SPECIFICATIONS
Frequency: 30-88 MHz (FM) 108-152 MHz (AM) VSWR: 2.6:1 (FM) 2.3:1 (AM)
Pattern: Omni/Az Cos/El  Polarization: Vertical
Impedance: 50 ohms  Power: 100 watts
Lightning Protection: DC grounded  Weight: 2.5 lbs
Height: 11.85" Drag: 1.0 lb Mach .85 @ 35,000 ft
Material: St. steel / AI-A356-T61 / glass Finish: Skydrol resistant enamel
Connector: BNC  Temperature: -65°F to +160°F
Vibration:  10 G's Altitude:  60,000 ft
Side Load  6 psi

S65828252 Diagram



Part NumberVHF AM/FM Antenna Description:
S65-8282-26 Same as -52 except for extended base, Weight: 2.5 lbs. Height: 12.00" Interchangeable with Collins 437-S1
S65-8282-30 Same as -52 except for 40 watt power
S65-8282-52  see details above



S65-8282-52
- VHF Comm Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
