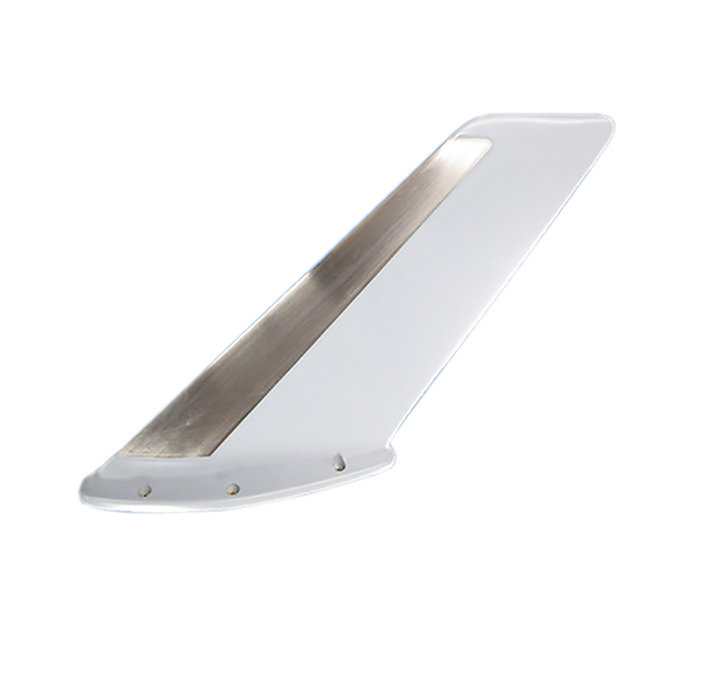

Picture of product S65828226

Part #: S65-8282-26

Model: S65828226

OEM:

Sensor Systems

Desc:

VHF Comm Antenna

Part Number :


S65-8282-26



FEATURES

  • VHF AM/FM Antenna
  • Designed for speeds up to Mach 2.0 with low drag
  • Designed for use with AN/ARC-186 or similar VHF/AM/FM transmitter at 30-88/108-152 MHz
  • Provides low VSWR over operating bands
  • Interchangeable with Collins 437-S1
  • Hermetically sealed
  • Designed for universal mounting
  • Ideal for antenna replacement in existing systems where dual-frequency antenna capable of handling 40 watts is required
  • Federal and Military Specs: FAA TSO C37b and C38b. MIL-STD-810, MIL-E-5400, MIL-A-7772 (ASG), MIL-A-9094, MIL-B-5087



SPECIFICATIONS
Frequency: 30-88 MHz (FM) 108-152 MHz (AM) VSWR: 2.6:1 (FM) 2.3:1 (AM)
Pattern: Omni/Az Cos/El  Polarization: Vertical
Impedance: 50 ohms  Power: 100 watts
Lightning Protection: DC grounded  Weight: 3.4 lbs lbs
Height: 12.0" Drag: 1.0 lb Mach .85 @ 35,000 ft
Material: St. steel / AI-A356-T61 / glass Finish: Skydrol resistant enamel
Connector: BNC  Temperature: -65°F to +160°F
Vibration:  10 G's Altitude:  60,000 ft
Side Load  6 psi



S65828226 Diagram

Part Number: Description:
S65-8290-26 VHF Comm Antenna
S65-8282-30 Same as above except for six-hole base, 40 watt power, 11.85" height, and 2.5 lbs weight
S65-8282-52  Same as above except for six-hole base, 11.85 in height, and 2.5 lbs weight



S65-8282-26
- VHF Comm Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
