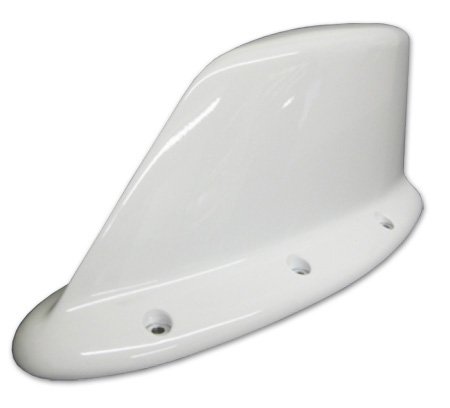

Picture of product S658282201

Part #: S65-8282-201

Model: S658282201

NSN:

5985-01-534-4023

OEM:

Sensor Systems

Desc:

SATCOM Antenna

Part Number :


S65-8282-201
FEATURES
  • LHCP Satcom Antenna
  • Low-gain satcom antenna covering the Thuraya satellite system frequency range of 1530 to 1660 MHz
  • Small, low-drag antenna less than 5 inches tall
  • Provides over 90% sky coverage
  • DC grounded
  • Hermetically sealed
  • Federal & Military Specs: MIL-HDBK-5400T, MIL-STD-810D, DO-160C



SPECIFICATIONS
Frequency: 1530-1559 MHz 1626.5-1660.5 MHz VSWR: 1.5:1
Polarization: RHCP Impedance: 50 ohms
Power Handling: 60 watts CW Lightning Protection: DC grounded
Gain:  ≥ -2dBic @ -20° ≤ θ ≤ +20° ≥ 0 dBic @ +20° < θ ≤ +78° ≥ 0 dBic @ -20° > θ ≥ -78° 0° = Zenith Dimensions: 4.57"H x 11"L x 4.25"W
Weight: 1.5 lbs  Material:  6061-T6 aluminum / thermoset plastic
Finish: Skydrol resistant enamel Connector:  TNC
Drag: 1.1 lbs Mach .85 @ 35,000 ft Temperature: -65°F to +185°F
Vibration: 10 G's Altitude: 70,000 ft
Part NumberLHCP Satcom Antenna Description:
Prod Number Product Description
S65-8282-201 see details above



S65-8282-201
- SATCOM Antenna

NSN: 5985-01-534-4023

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
