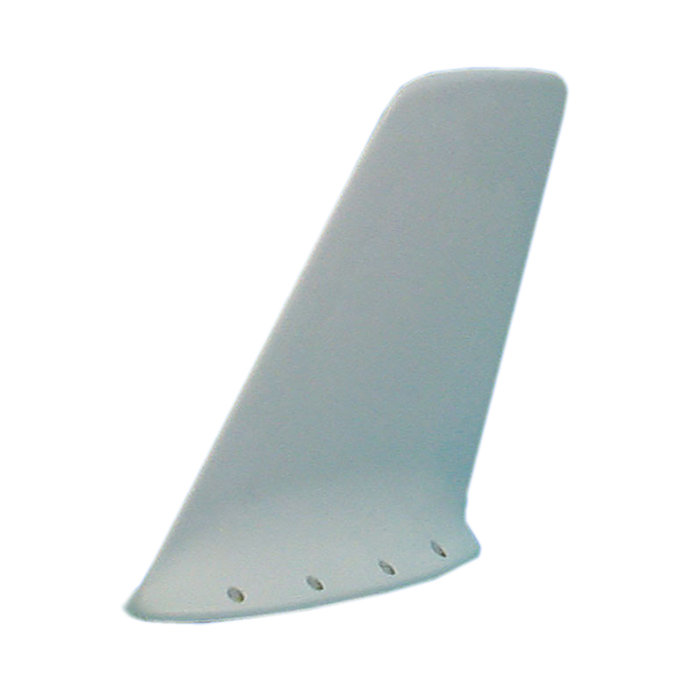

Picture of product S65-8282-98

Part #: S65-8282-98

NSN:

5985-01-552-7213

OEM:

Sensor Systems

Desc:

VHF/UHF Antenna

Part Number :


S65-8282-98



FEATURES

  • VHF/UHF Antenna
  • High-speed, low-drag, multifunction antenna
  • Broadband operational frequency enables use in VHF/UHF systems
  • Phase-matched antenna for DF systems
  • Application: C-130
  • Federal and Military Specs: MIL-STD-810, MIL-E-5400, MIL-A-7772 (ASG), MIL-A-9094, MIL-B-5087



SPECIFICATIONS
Frequency: 20-500 MHz VSWR: 3.5:1 (20-30) 2.6:1 (30-100) 2.3:1 (100-500)
Pattern: Omni/Az Cos/El Polarization: Vertical
Impedance: 50 ohms Power: 40 watts
Lightning Protection: DC grounded Weight: 3 lbs.
Height: 14.2 in. Material: 6061-T6 aluminum / glass
Finish: Skydrol resistant enamel Connector: TNC
Drag: 2.0 lbs. Mach .85 @ 35,000 ft. Side Load: 6 psi.
Temperature: -65°F to +160°F Vibration: 10 G's
Altitude: 60,000 ft.
Part Number Description:
S65-8282-78 VHF/UHF Antenna, with 30-500 MHz
S65-8282-98 VHF/UHF Antenna



S65-8282-98
- VHF/UHF Antenna

NSN: 5985-01-552-7213

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
