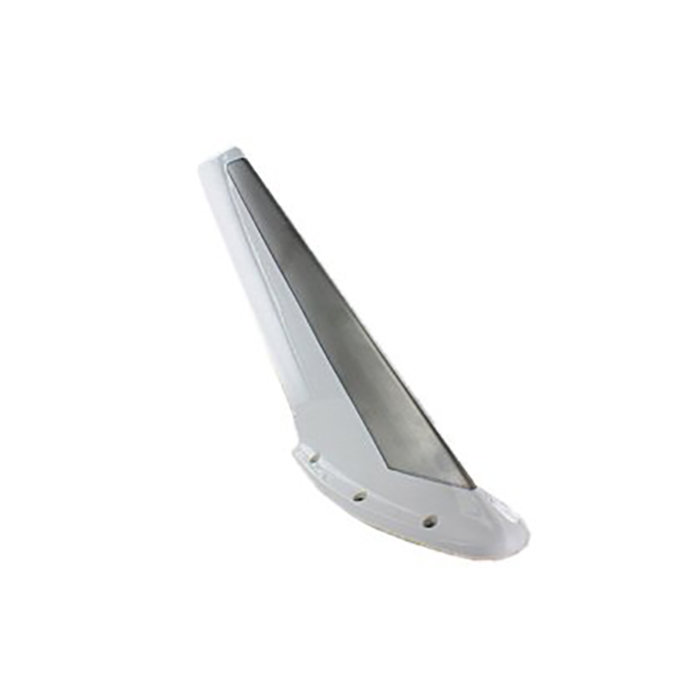

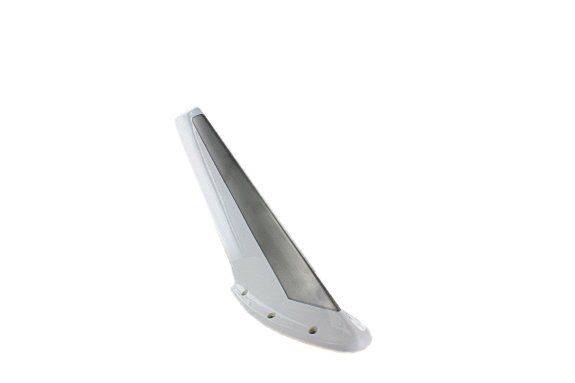

Part #: S65-8282-51

NSN:

5985-01-507-9736

OEM:

Sensor Systems

Desc:

VHF/UHF Antenna

Part Number :



S65-8282-51
FEATURES
  • VHF/FM Antenna
  • For speeds up to Mach 2.0 with low drag
  • Designed for use with AN/ARC-182 or similar VHF/AM/FM/UHF transmitter at 30-88/108-174/225-400 MHz
  • Provides low VSWR over operating band
  • Six-hole bolt pattern - footprint replaces Collins 37R-2U (single connector)
  • Hermetically sealed
  • Designed for universal mounting
  • Ideal for antenna replacement in existing systems where a dual frequency antenna capable of handling 40 watts is required with single connector
  • FEDERAL & MILITARY SPECS: FAA TSO C37b, C38b and C59, MIL-STD-810, MIL-E-5400M MIL-A-7772 (ASG), MIL-A-9094, MIL-B-5087
SPECIFICATIONS
Frequency: 30-88 MHz (VHF/FM) 108-174 (VHF/AM) 225-400 MHz (UHF) VSWR: 2.6:1 (VHF/FM) 2.3:1 (VHF/AM & UHF)
Pattern: Omni/Az, Cos/El Polarization: Vertical
Impedance: 50ohms Power: 100 watts
Lightning Protection: DC Grounded  Weight: 2.5 lbs
Height: 11.85" Material: St. Steel / AL-A356-T61 / glass
Finish: Skydrol Resistant Enamel  Connector: TNC (-34, -51) / TNC Right Angle (-50)
Drag: 1.0 lb Mach .85 @ 35,000 ft  Side Load: 6 PSI
Temperature:  -65°F to +160°F  Vibration:  10 G's
Altitude:  60,000 ft
S65-8282-34 Footprint.gif
Part Number: Description:
S65-8282-51  VHF/UHF Antenna



S65-8282-51
- VHF/UHF Antenna

NSN: 5985-01-507-9736

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
