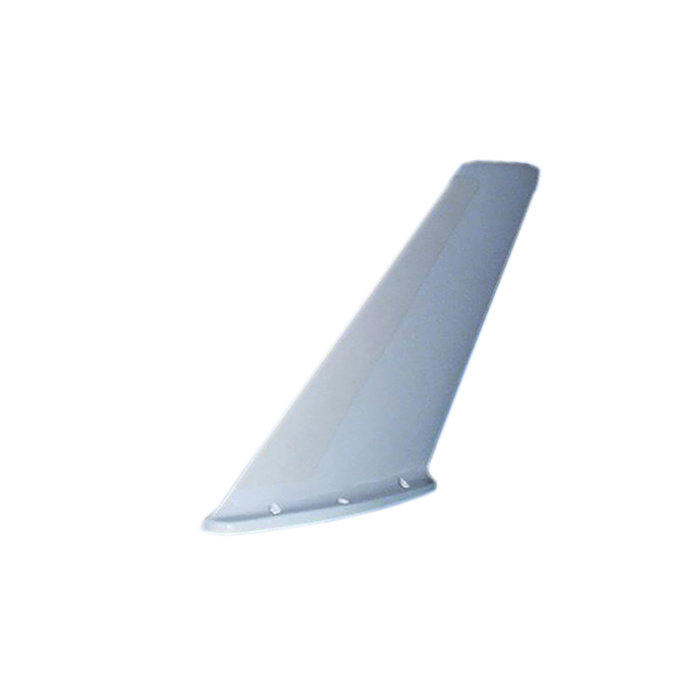

Picture of product S65-8282-323
Part #: S65-8282-323
Model: S65-8282-323
Desc: VHF/UHF/AM/FM & L-Band Antenna
OEM: Sensor Systems
NSN: 1680-01-587-7928
Sched-B: 8529104000
ECCN: 7A994
Cage Code: 13691
Part Number :




S65-8282-323
FEATURES
  • VHF/UHF/AM/FM & L-Band antenna designed for speeds greater than Mach 1.0
  • Provides low VSWR over operating bands of 30-88 / 108-174, 225-400 / 960-1220 MHz
  • Hermetically-sealed and DC-grounded with six-hole bolt pattern, designed for universal mounting
  • Interchangeable with Collins 37R-2U and similar antennas



SPECIFICATIONS

Frequency: 30-88 MHz (VHF/FM), 108-174 MHz (VHF/AM), 225-400 MHz (UHF), 960-1220 MHz (L-Band), 1030-1090 MHz (L-Band) VSWR:  ≤ 2.6:1 (30-88 MHz), ≤2.3:1 (108-174/225-400 MHz), ≤2.0:1 (960-1220 MHz), ≤1.5:1 (1303-1090 MHz)
Pattern: Omnidirectional in Azimuth, Cosinusoidal in Elevation Polarization:  Vertical
Impedance: 50 ohms Power: 100 Watts (50% duty cycle) 130 Watts (100% duty cycle) 400 Watts Peak
Lightning Protection:  DC Grounded Weight: 6.0 oz
length: 3.25 inches Material: A356-T61 Aluminum Alloy/Fiberglass
Finish: Skydrol Resistant Enamel Connector: TNC Female (VHF/UHF/AM/FM)
Side Load: 10 PSI Temperature: -55°C (-67°F) to +85°C (+185°F)
DRAG: 1.0 lbs Mach .85 @ 35,000 ft. Altitude: 60,000 ft.
weight: 2.5 lbs. height: 11.85 inches



Part Number: Description:
S65-5366-323 VHF/UHF/AM/FM & L-Band Antenna



X
X
X
Serial # 822-1362
Condition NEW
Mods None
Tag Date 07/24/24
Shop Sensor Systems
Warranty 1 Year
S65-8282-323
- VHF/UHF/AM/FM & L-Band Antenna

NSN: 1680-01-587-7928

Price Condition Status
$13,750.00 NEW OUTRIGHT 1 IN STOCK
