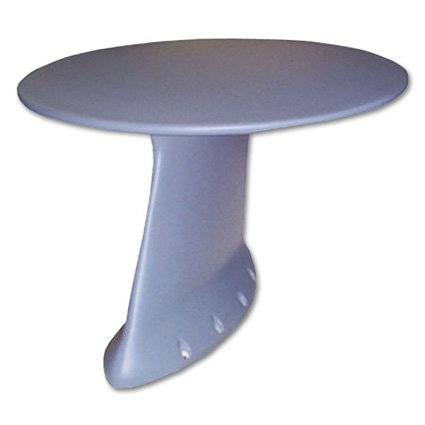

Picture of product S65-8282-196

Part #: S65-8282-196

NSN:

5985-01-507-7029

OEM:

Sensor Systems

Desc:

UHF/SATCOM/GPS Antenna

Part Number :



S65-8282-196



FEATURES

  • UHF/Satcom/GPS Antenna
  • Provides three functions from a single, low profile footprint
  • Traditional low-angle, vertically polarized blade is used for air-to-air and air-to-ground communications
  • High-angle RHCP element is designed for UHF Satcom
  • Broad cardioid pattern provides coverage for up to plus or minus 35 degrees from zenith
  • 40 dB gain active L1/L2 GPS is housed in the radome to provide GPS function on the third output connector
  • Military application
  • Federal & Military Specs: MIL-E-5400, MIL-A-7772, MIL-A-9094 and MIL-STD-810



SPECIFICATIONS
Frequency: 240-400 MHz (high angle UHF) 225-400 MHz (low angle UHF) 1565-1586 MHz (L1 GPS) 1217-1238 MHz (L2 GPS)  VSWR: 1.5:1 (high angle) 2.0:1 (low angle) UHF & GPS
Pattern: Cardioidhemispheric RHCP (high angle) Omni/Az, Cos/EI (low angle) Polarization: RHCP (high angle) UHF & GPS Vertical (low angle)
Impedance: 50 Ohms Power: 200 watts CW (high angle) 200 watts CW (low angle)
Gain:  7.0 dBic (high angle UHF) 2.0 dBil (low angle UHF) 3 dBic + 40 dB active preamp (GPS) Weight: 8.4 lbs
Dimensions: 10.25" H max X 16" D Material: 6061-T6 aluminum / glass
Finish: Skydrol resistant enamel Connector: N, TNC
Drag: 2.8 lbs Mach .85 @ 35,000 ft Side Load: 10 psi
Temperature: -77°F to +185°F Vibration: 10 G's
Shock: 20 G's Altitude: 50,000 ft



S65-8282-196 Footprint

Part Number:  Description:
S65-8282-196 UHF/SATCOM/GPS Antenna



S65-8282-196
- UHF/SATCOM/GPS Antenna

NSN: 5985-01-507-7029
