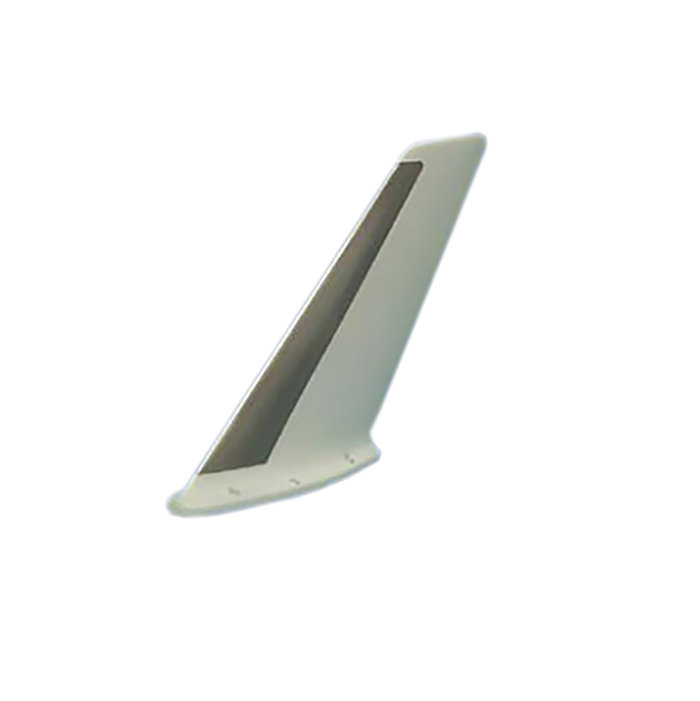

Part #: S65-8282-130

NSN:

5985-01-607-3557

OEM:

Sensor Systems

Desc:

UHF Antenna

Part Number :


S65-8282-130

FEATURES
  • UHF Satellite Communication antenna
  • Provides two functions from a single low-profile antenna footprint
  • Traditional low-angle vertically-polarized blade can be used for air-to-air and air-to-ground communications
  • High-angle RHCP element is usable for UHF Satcom
  • Broad cardioid pattern provides coverage for up to plus or minus 35 degrees from zenith
  • Military application
  • Federal & Military Specs: MIL-E-5400, MIL-A-7772, MIL-A-9094 and MIL-STD-810



SPECIFICATIONS

Frequency: 240-400 MHz (high angle) 225-400 MHz (low angle) VSWR: 1.5:1 (high angle) 2.0:1 (low angle)
Pattern: Cardioidhemispheric RHCP (high angle) Omni/Az (low angle) Cos/El  Polarization: RHCP (high angle) Vertical (low angle)
Impedance: 50 ohms  Power: 200 watts CW (high angle) 200 watts CW (low angle)
Gain: 7.0 dBic (high angle) 2.0 dBil (low angle)  Weight: 6.0 lbs
Height: 9.71"  Diameter: 16.0"
Material: 6061-T6 aluminum / glass  Finish: Skydrol resistant enamel
Connector: Drag: 2.8 lbs Mach .85 @ 35,000 ft
Side Load: 10 psi  Temperature:  -77°F to +185°F
Vibration:  10 G's  Shock:  20 G's
Altitude:  50,000 ft

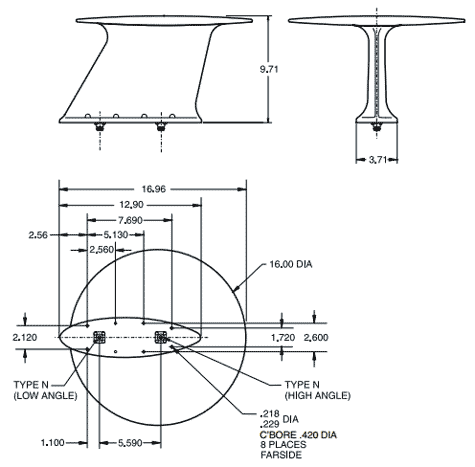

S658282130 Diagram



Part Number Description:
S65-8282-130 UHF Satcom Antenna



S65-8282-130
- UHF Antenna

NSN: 5985-01-607-3557
