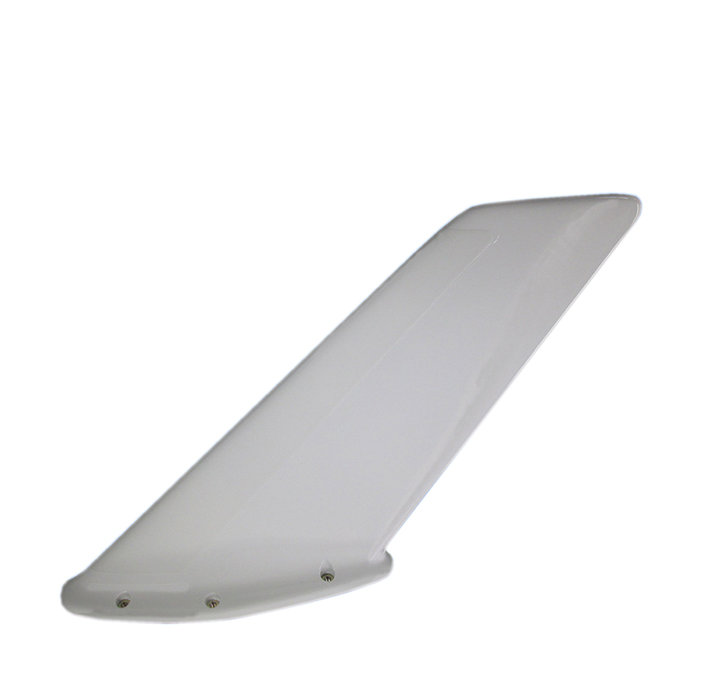

Picture of product S65-8282-123

Part #: S65-8282-123

NSN:

5985-01-579-6711

OEM:

Sensor Systems

Desc:

Wide Band Antenna

Part Number :


S65-8282-123



FEATURES

  • VHF/UHF/L-Band antenna
  • Designed for speeds up to Mach 1.0 with low drag
  • Designed for use with AN/ARC-182 or similar VHF/AM/FM/UHF/L-Band transmitters at 30-88/108-174/225-400/960-1220 MHz
  • Provides low VSWR over operating band
  • Operates at 100 watts CW from 30-88 MHz, 108-174 MHz, and 225-400 MHz
  • Six-hole bolt pattern
  • Interchangeable with Collins 37R-2U or similar
  • Hermetically sealed
  • DC grounded
  • Designed for universal mounting
  • Ideal for antenna replacement in existing systems where a multi-frequency antenna is required
  • Federal & Military Specs: DO- 160A, MIL-A-7772, MIL-E-5272, MIL-E-5400, TSO-C37b, TSO-C38b, TSO-C74c,  C66b, TSO-C59



SPECIFICATIONS
Frequency: 30-88 MHz (VHF/FM) 108-174 MHz (VHF/AM) 225-400 MHz (UHF) 960-1220 MHz (L-Band) VSWR: 2.6:1 (VHF/FM) 2.3:1 (VHF/AM & UHF) 1.5:1 (L-Band)
Pattern: Omni/Az Cos/El  Polarization: Vertical
Impedance: 50 ohms  Power: 100 w/cont (VHF/AM/FM & UHF) 1000 w/pk (L-Band)
Lightning Protection: DC grounded  Weight: 2.5 lbs
Height: 11.85"  Material: Polyfilm / AL-A356-T61 / glass
Finish: Skydrol resistant enamel  Connector: TNC (VHF & UHF) N (L-Band)
Drag: 1.0 lb Mach .85 @ 35,000 ft  Side Load: 6 psi
Temperature: -67°F to +185°F  Vibration:  10 G's
Altitude:  60,000 ft

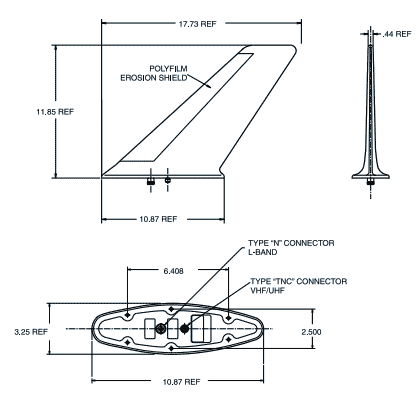

S658282123 Diagram

Part Number: Description:
S65-8282-123 Wide Band Antenna



S65-8282-123
- Wide Band Antenna

NSN: 5985-01-579-6711
