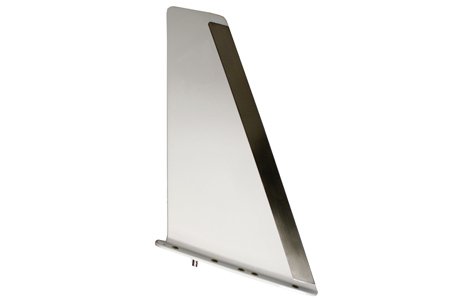

Picture of product S65-8262-2G

Part #: S65-8262-2G

OEM:

Sensor Systems

Desc:

Broadband VHF Antenna

Part Number :


S65-8262 Series
FEATURES
  • VHF Broadband Antenna
  • All metal
  • DC grounded to provide lightning protection
  • Eliminates "P" static
  • Hermetically sealed
  • Broadband frequency range
  • High resistance to erosion and impact
  • For commercial airliners
  • Federal and Military Specs: FAA TSO C37b and C38b. DO-160, MIL-STD-810, MIL-E-5400, MIL-E-5272, MIL-A-7772 (ASG), MIL-A-6271, MIL-A-9094



SPECIFICATIONS
Frequency: 116-156 MHz 90-160 MHz (-2Y) VSWR: 2.0:1 4.0:1 (-2Y)
Pattern: Omni/AZ Cos/El Polarization: Vertical
Impedance: 50 ohms Power: 100 w/cont Rec only (-2Y)
Lightning Protection: DC Grounded Weight: 4.0 lbs.
Height: 17.65 in. Material: A356-T61 aluminum casting
Finish: Skydrol resistant enamel Connector: See connector chart
Drag: 2.5 lbs. Mach .85 @ 35,000 ft. Side Load: 12 psi
Temperature: -65°F to +185°F Vibration: 14 G's
Altitude: 60,000 ft.



 S65-8262 Series Diagram

Part NumberVHF Antenna Description:
S65-8262-2 see details above
S65-8262-2A Boeing version; Same as -2 except hot-air, deicing duct
S65-8262-2G Same as -2 except leading edge stainless steel gravel shield
S65-8262-2Y Same as -2 except 90-160 MHz frequency
S65-8262-5A Lockheed version; Same as -2 except hot-air, deicing duct
S65-8262-DC10A Douglas version; Same as -2 except hot-air, deicing duct



S65-8262-2G
- Broadband VHF Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
