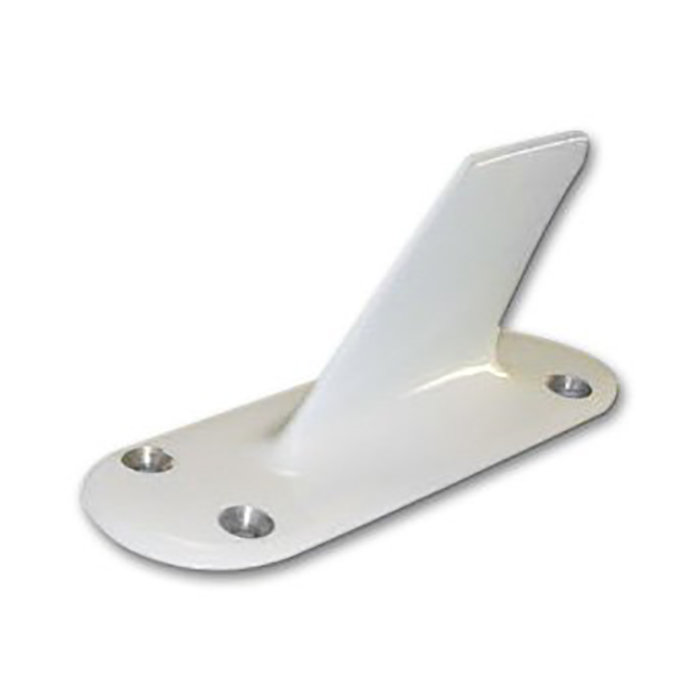

Picture of product S65-5366-7L

Part #: S65-5366-7L

NSN:

5985-01-072-8282

OEM:

Sensor Systems

Desc:

L-Band Antenna

Part Number :


S65-5366-7L



FEATURES

  • L-Band Antenna
  • Rugged, high-efficiency, all metal aluminum casting
  • DC grounded
  • Hermetically sealed
  • For use with transponder, DME, ATC, IFF & Mode S application
  • For commercial, military & general aviation aircraft
  • Federal & Military Specs: FAA TSO C66b, C74c, and C112. MIL-STD-810, MIL-E-5400, MIL-A-25708, MIL-A-25730, MIL-A-9904, MIL-B-5087, MIL-A-7772



SPECIFICATIONS
Frequency: 960-1220 MHz VSWR:  1.4:1 (1000-1100) 1.7:1 (960-1220)
Pattern: Omni/Az Cos/El Polarization: Vertical
Impedance: 50 ohms Power: 4000 w/pk 250 w/cont
Lightning Protection:  DC Grounded Weight: 4 oz
Height: 2.2" Material: A356-T61 aluminum casting
Finish: Skydrol Resistant Enamel Connector: See chart below
Drag: 1 oz Mach .85 @ 35,000 ft. Temperature: -65°F to +185°F
Vibration: 10G's Altitude: 70,000 ft.
Part Number: Description:
S65-5366-2L L-Band Antenna, with HN Connector
S65-5366-3L L-Band Antenna, with TNC connector & no O'Ring
S65-5366-7L L-Band Antenna, Basic Version, wirh C Connector
S65-5366-8L L-Band Antenna, with stainless steel casting & 8oz weight, C Connector
S65-5366-10L L-Band Antenna, with N Connector
S65-5366-10LC L-Band Antenna, with C Connector
S65-5366-11L L-Band Antenna, with N Connector
S65-5366-116L L-Band Antenna, with stainless steel casting & 8oz weight, N Connector
S65-5366-119L L-Band Antenna, with stainless steel casting & 8oz weight, N Connector



Serial # 261-143931
Condition NEW
Mods -
Tag Date 07/26/23
Shop Sensor Systems
Warranty 1 Year
S65-5366-7L
- L-Band Antenna

NSN: 5985-01-072-8282

Price Condition Status
$1,100.00 NEW OUTRIGHT 1 IN STOCK
