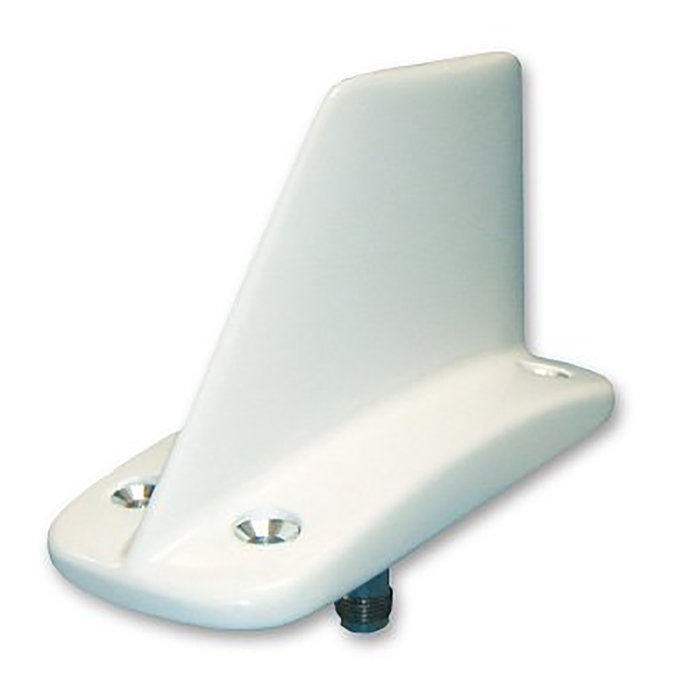

Picture of product S65-5366-715

Part #: S65-5366-715

OEM:

Sensor Systems

Desc:

QUAD GSM Antenna

Part Number :


S65-5366-715



FEATURES

  • Small blade antenna
  • Designed to support present and future 3G/UMTS Telecommunications plans
  • Supports on-aircraft pico cell functionality and external air-to-ground service
  • Four-hole baseplate design provides a common installation for any aircraft application
  • Hermetically sealed
  • DC grounded
  • Federal & Military Specs: MIL-HDBK-5400, MIL-STD-810, MIL-E-5272C, MIL-A-7772B, RTCA/DO-160C/E, TSO C66c, TSO C74c



SPECIFICATIONS
Frequency: 800-2650 MHz VSWR:  ≤ 2.0:1
Polarization: Vertical Impedance: 50 Ohms
Power Handling: 100 watt Peak, 50 Watts Continuous Lightning Protection: DC grounded
Weight: 7 oz measurements: 2.86" H x 5.12" L
Material: 6061-T6 aluminum/Thermoset Plastic Finish: Skydrol Resistant Polyurethane Enamel
Connector: TNC Female Temperature: -65°F to +185°F
Vibration: 10 G's side load: 10 PSI
altitude: -1800 to 70,000 ft



Part Number: Description:
S65-5366-715 QUAD GSM Antenna



Skydrol Resistant Polyurethane Enamel
°
°
S65-5366-715
- QUAD GSM Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
