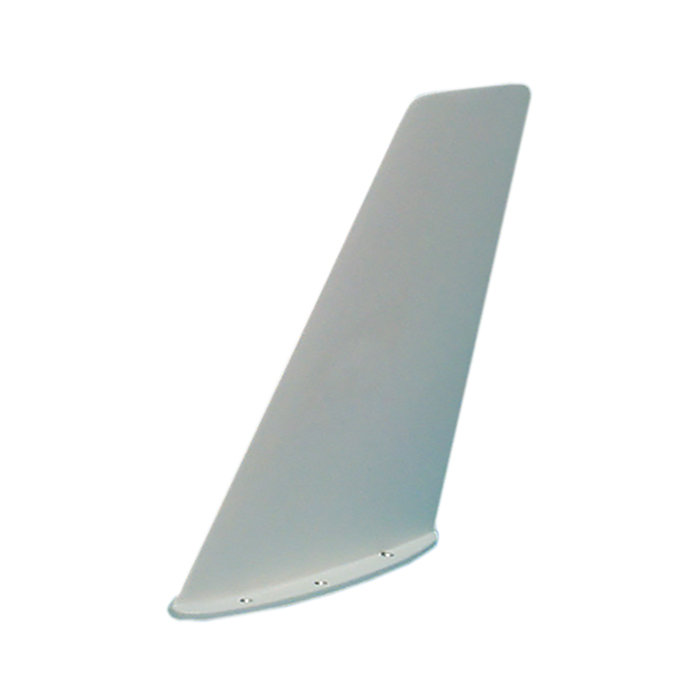

Picture of product S65-111-310

Part #: S65-111-310

NSN:

5985-01-641-4575

OEM:

Sensor Systems

Desc:

VHF/UHF Antenna

Part Number :


S65-111-310
FEATURES
  • VHF/UHF Antenna
  • All metal
  • Rugged contruction provides high degree of structural rigigity & protection from rain erosion as well as sand and gravel
  • VHF covers frequencies from 132-174 MHz
  • UHF covers frequencies from 225-400 MHz
  • TSO C37b, C38b, C59
  • MIL Certifications: MIL-A-6271A, MIL-A-9094C, MIL-A-7772B (ASG), MIL-E-5272C, and MIL-E-5400
  • Interchangeable with Collins 37R-2U antennas



SPECIFICATIONS
Frequency: 132-174 MHz (VHF), 225-400 MHz (UHF) VSWR: 2.0:1 (VHF), 2.6:1 (UHF)
Pattern: Omnidiretional in Azimuth, Cosinusoidal in Elevation  Polarization: Vertical
Impedance: 50 ohms  Power: 100 watts continuous
Length: 11.63"  Weight: 4.2 lbs
Height: 14.60"  width: 3.17"
Finish: Skydrol resistant enamel  Connector: BNC (VHF), TNC (UHF)
Drag: 2.5 lbs. Mach .85 @ 35,000 ft  Side Load: 6 psi
Temperature: -40°F to +185°F  material:  A356-T61 Aluminum Alloy Casting
Altitude:  60,000 ft  efficiency: 85%



Part Number VHF/UHF Antenna Description:
S65-111-310 see details above



S65-111-310
- VHF/UHF Antenna

NSN: 5985-01-641-4575

Price Condition Status
$13,450.00 NEW OUTRIGHT DUE IN
