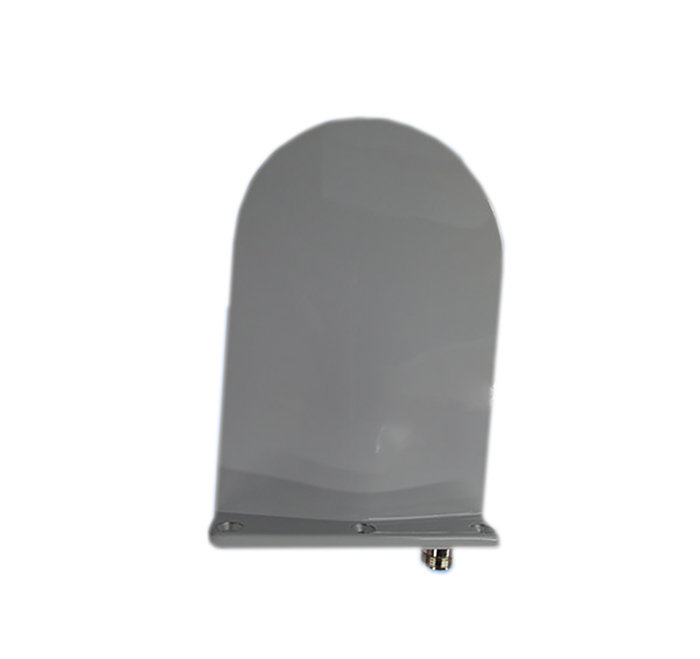

Picture of product S414226

Part #: S41422-6

Model: S414226

NSN:

5985-01-418-9145

OEM:

Sensor Systems

Desc:

Glide Slope Antenna

Part Number :


41422-6



FEATURES

  • High-gain, single-port Glide Slope antenna with built-in fault isolation network
  • Fiberglass radome bonded over alloy casting provides high structural strength
  • Type ‘N’ connector. Hermetically-sealed for long service life
  • Interchangeable with other Glide Slopes, simplifying spares replacement
  • Interchangeable with Collins 37P-5
  • Certified for Category III aircraft
  • Federal & Military Specs: MIL-E-5400H, MIL-E-5272C, MIL-STD-810B, ARINC Characteristic 519



SPECIFICATIONS

Frequency: 329.0-335.0 MHz VSWR:  ≤ 2.0:1
Pattern: Cosinusoidal in E & H Planes Polarization: Linear (Horizontal)
Impedance: 50 ohms nominal thickness: 2.00 in.
width:  4.60 in. Weight: 0.60 lbs. (Max)
length: 6.90 in. Material: A356-T6 Alum Alloy/Epoxy Fiberglass
Finish: Skydrol Resistant Polyurethane Enamel Connector: n Female
Vibration: ±10G's Temperature: -61°C (-77°F )to +74° (+165°F )
Altitude: -1800 to 80,000 ft.



Part Number: Description:
S41422-6 Glide Slope Antenna



S41422-6
- Glide Slope Antenna

NSN: 5985-01-418-9145

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
