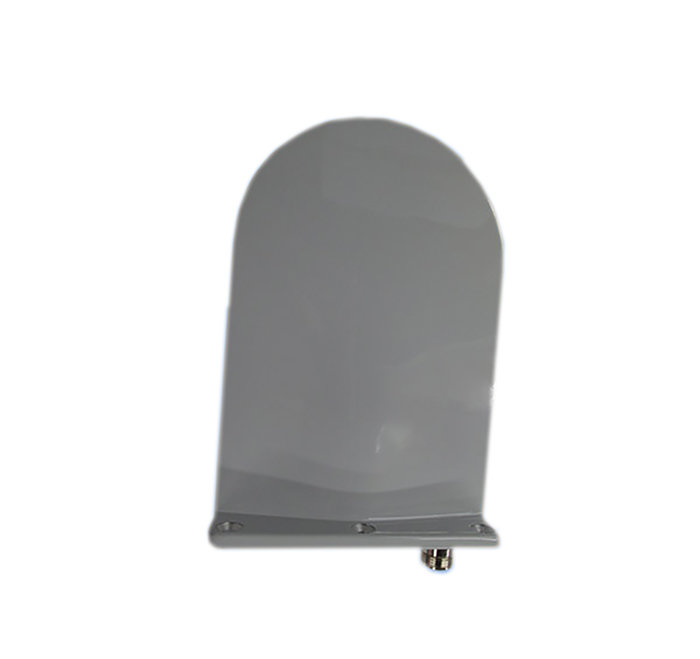

Picture of product S414225

Part #: S41422-5

Model: S414225

OEM:

Sensor Systems

Desc:

Glideslope Antenna

Part Number :


41422-5



FEATURES

  • High-gain, single-port Glide Slope antenna
  • Fiberglass radome bonded over alloy casting provides high structural strength
  • Type ‘C’ connector. Hermetically-sealed for long service life
  • Interchangeable with other Glide Slopes, simplifying spares replacement
  • Interchangeable with Collins 37P-5
  • Certified for Category III aircraft
  • Federal & Military Specs:TSO-C34b, MIL-E-5400H, MIL-E-5272C, ARINC Characteristic 519



SPECIFICATIONS

Frequency: 329.0-335.0 MHz VSWR:  ≤ 2.0:1
Pattern: Cosinusoidal in E & H Planes Polarization: Linear (Horizontal)
Impedance: 50 ohms nominal thickness: 2.00 in.
width:  4.60 in. Weight: 0.60 lbs. (Max)
length: 6.90 in. Material: A356-T6 Casting/Epoxy Fiberglass
Finish: Skydrol Resistant Epoxy Enamel Connector: C Female
Vibration: 10G's Temperature: -73°C (-100°F )to +121° (+250°F )
Altitude: 80,000 ft.



Part Number: Description:
S41422-5 Glideslope Antenna



S41422-5
- Glideslope Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
