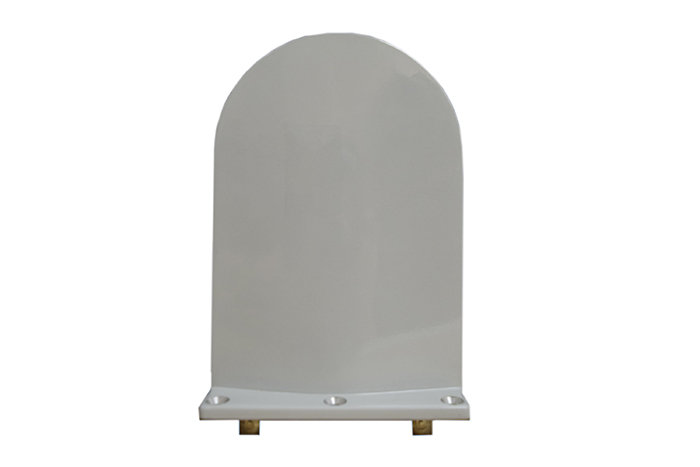

Picture of product S41422

Part #: S41422

NSN:

5985-01-424-4934

OEM:

Sensor Systems

Desc:

Glideslope Antenna

Part Number :


41422



FEATURES

  • High-gain, dual-port Glide Slope antenna with built-in fault isolation network
  • Fiberglass radome bonded over alloy casting provides high structural strength
  • Type ‘C’ connectors. Hermetically-sealed for long service life
  • Interchangeable with other Glide Slopes, simplifying spares replacement
  • Certified for Category III aircraft. Interchangeable with Collins 37P-5
  • FEDERAL & MILITARY SPECS: TSO-C34e, ETSO-2C34f, MIL-E-5400H, MIL-E-5272C, ARINC Characteristic 519, BAC Specs D10-3064 & D6-10853, MIL-STD-810, DO-192



SPECIFICATIONS

Frequency: 328.6-335.4 MHz VSWR:  ≤ 2.0:1
Pattern: Cosinusoidal in E & H Planes Polarization: Linear (Horizontal)
Impedance: 50 ohms nominal thickness: 2.00 in.
width:  4.60 in. Weight: 0.60 lbs. (Max)
length: 6.90 in. Material: A356-T51 Casting/Epoxy Fiberglass
Finish: Skydrol Resistant Polyurethane Enamel Connector: C Female
Vibration: 4.86 G RMS Temperature: -55°C (-67°F )to +74° (+165°F )
Altitude: 50,000 ft. cross Polarization: ≥ 10 dB below primary polarization



Part Number: Description:
S41422 Glideslope Antenna



S41422
- Glideslope Antenna

NSN: 5985-01-424-4934

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
