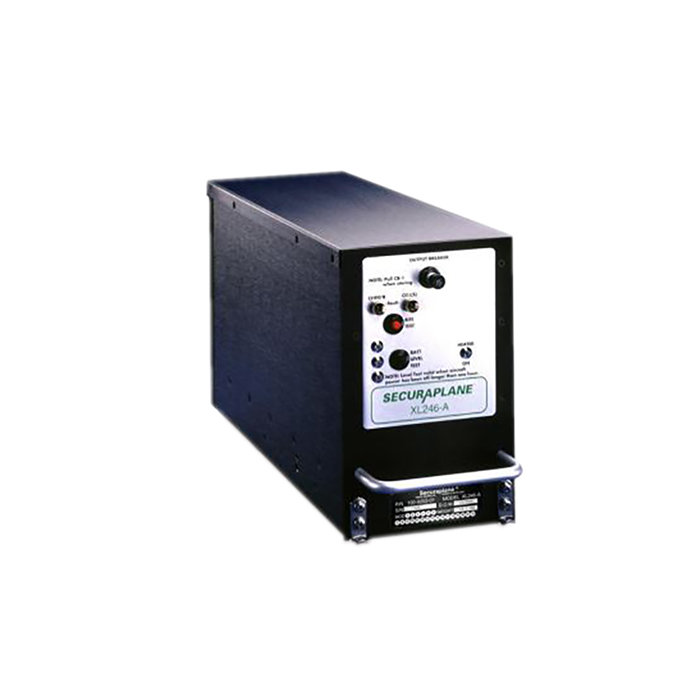

Picture of product XL246-A

Part #: 100-0202-01

Model: XL246-A

OEM:

Securaplane

Desc:

XL246A Emergency Battery Systems

Part Number :

Power & Sensing Tucson, Airframe Systems, aka Securaplane | Aviation  Manufacturers - Greater Oro Valley Chamber of Commerce




XL246-A
FEATURES
  • The XL246-A is an emergency battery system providing 6 amps of power at 18 to 24VDC
  • No need to remove from aircraft for capacity check
  • “Pure lead” SLA batteries
  • Built-in battery charger
  • Built-in battery test
  • Diagnostics and BITE
  • Environmental control
  • 200W for 45 minutes (2.9 ohm load
  • 6A for one hour (minimum)
  • 15A maximum (-01 unit)
  • 10A maximum (-02 unit)



SPECIFICATIONS

Qualification: DO-160 -55 to + 71º C (55,000 ft) Cooling: Convection (no forced air)
Mounting: ½ ATR short tray Output power:

(at 60º F or above), 18-24 VDC,

WEIGHT:

18.6 lbs.  (Max)

Input power: 20-35 VDC (28 VDC nominal), 10 Amps maximum
Battery pack: 24 VDC 6Ah (at 1 hour rate). Sealed lead acid (dry Battery heater: 28 VDC (from A/C Bus) 2.8A when “on” below 60º F
Part Number: Description:
100-0202-01 XL246A Emergency Battery Systems





100-0202-01
- Emergency Battery
Price Condition Status
RFQ RFQ RFQ
