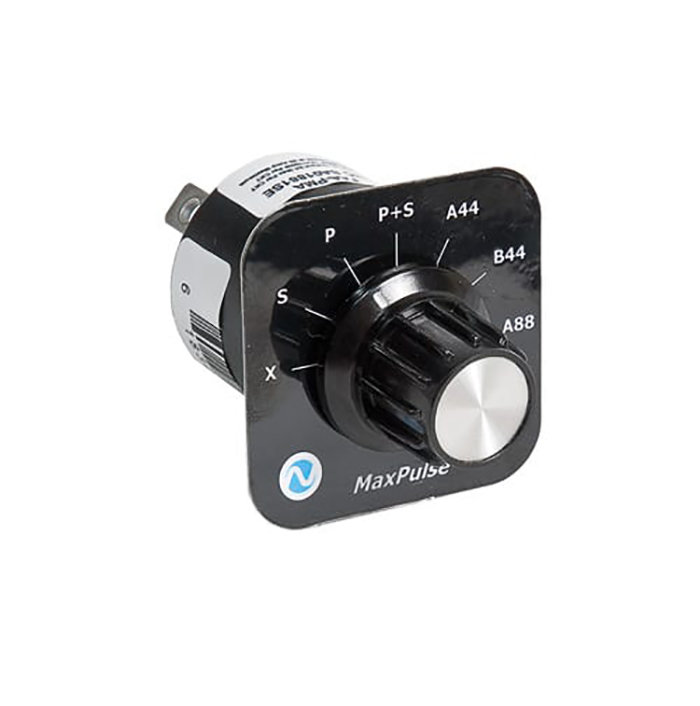

Picture of product 9200-000-B

Part #: 9200-000-B

OEM:

Seaton

Desc:

MaxPulse Landing Light Contoller

Part Number :




FEATURES

  • MaxPulse Landing Light Controller with spade or ring terminals
  • Greatly increases the visibility of the aircraft in both daylight and nighttime operations which improves the safety of the flight
  • Compact, lightweight, powerful, solid state reliability to give that Wig-Wag effect
  • No outboard heat sinks or rheostats
  • Works with all major brands of lights
  • Gives the operator complete control over his landing light and/or taxi light
  • Many settings to choose from
  • X – both circuits are off
  • S – Starboard/Right on only
  • P – Port/Left on only
  • S+P – Both circuits on
  • A44 – Alternate at 44 PPM (STD)
  • B44 – Both flash at 44 PPM
  • A88 – Alternate at 88 PPM
  • A120 – Alternate at 120 PPM
  • FAA STC/PMA approved, with extensive AML
  • RTCA/DO-160E Qualified
  • Comes with MaxPulse unit, installation instructions, spade or ring terminals, placard, drill guide, and knob
  • One year limited warranty
  • Made in the US





SPECIFICATIONS

voltage range: 12 to 35 VDC Weight: 1 once (28g)
Temperature Range: (Storage) -40° to +100°C , (Operating) -30° to +85°C MAXIMUM Current: 10 A per Channel
output channels: 2 internal temp protected: +85°C
INTERNAL TEMP: +25° C at 10 A  DO-160E TESTING: SEC. 21: RFE (EMI)
Part Number:  Description:
9200-000-B Landing light pulser/Ring terminals



9200-000-B
- MaxPulse Landing Light Contoller
