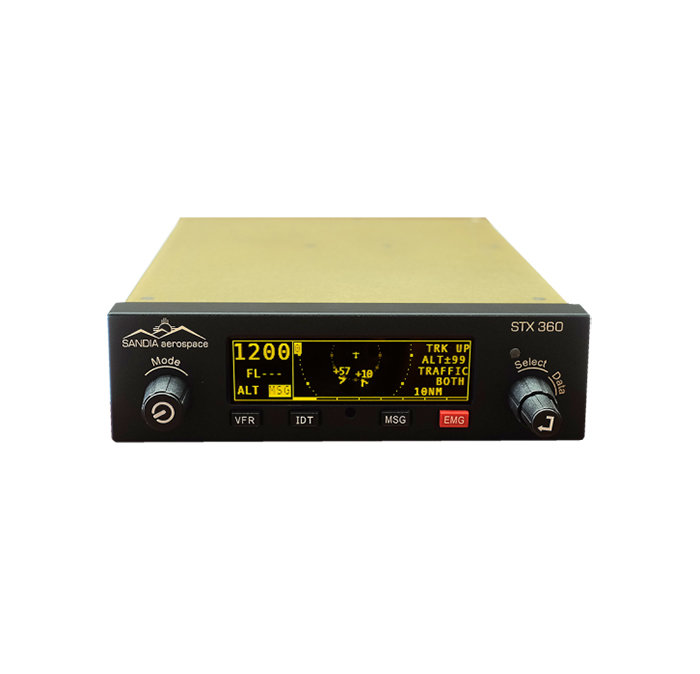

Picture of product STX-360

Part #: 706430-00

Model: STX-360

OEM:

Sandia Aerospace

Part Number :
Sandia Aerospace

STX-360 Sentinel

FEATURES
  • The STX 360 Sentinel is a 978 MHz UAT ADS-B unit with a built-in Mode A/C transponder
  • Provides a traffic display, METARs and status on its sunlight readable OLED display
  • STX 360 can display weather and traffic on portable devices such as an iPad or tablet
  • Uses an internal diplexer that allows both the transponder and the UAT to share a single antenna
  • UAT ADS-B In and Out
  • Pilot Selectable Anonymous Mode
  • Built-in Mode C Transponder
  • Built-in Diplexer – Single UAT/Transponder Antenna
  • Enhanced Visual Acquisition Traffic Display
  • Display of METARs
  • Single Entry for Squawk Code
  • Wireless iPad Weather, Traffic, and FIS-B
  • Fits Existing Transponder Panel Dimensions
  • Remote Options
SPECIFICATIONS
transmitter freq: 978 MHz receiver freq: 978 MHz
operating temperature: -20° to +55°C receiver sensitivity: -93 dBm
certification: * DO160G DO 178C Level C DO 254 Level C
Part Number Description
706430-00    STX-360 /Sentinel ADS-B





706430-00
- ADS-B UAT IN/OUT with Built-in Mode C Transponder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
