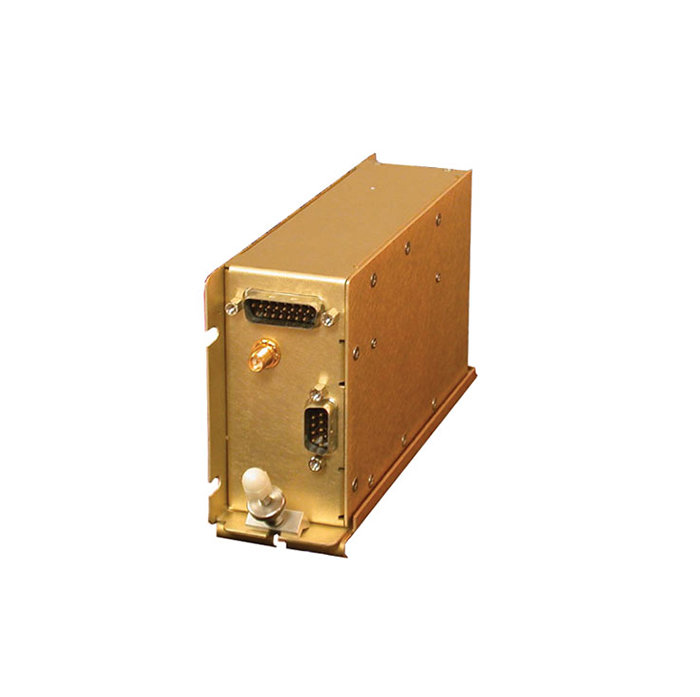

Picture of product STX-165R

Part #: 705831-00

Model: STX-165R

OEM:

Sandia Aerospace

Part Number :
Sandia Aerospace
STX-165R Remote Mode C Transponder

FEATURES
  • The STX 165R is a remote Mode C transponder that weighs only 1.16lbs and requires a mere 200mA current at 28Vdc
  • It can be fully controlled by aircraft navigators with the capability
  • This transponder will work with MGL, GRT, DYNON Avionics and Advance Flight
  • It is also ideally suited for use in UAVs where weight and current are primary concerns



SPECIFICATIONS
Weight: 1.16 lbs (0.526kg) dimensions: 3”H x 1.8”W x 6.9”L
operating temperature: -20o to +55o C aLTITUDE: -1000 to 35,000 Ft
INPUT voltage: 11-33Vdc RECEIVER freq: 1030 MHz
CURRENT REQ: 360 mA @ 14 Vdc, 180 mA @28 Vdc, (500PRF and 7777Code) POWER OUTPUTS: 200 Watts Nominal
behind panel dimensions: 8.89cm x 4.57cm x 17.53cm Receiver sensitivity: -74dBm Nominal @90% reply rate
ALT ENCODER: Grey Code CERTIFICATION: DO160F, DO178B Level C, TSO C74d
Part Number Description
705831-00 Remote Mode C Transponder









705831-00
- Remote Mounted Mode C Transponder
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
