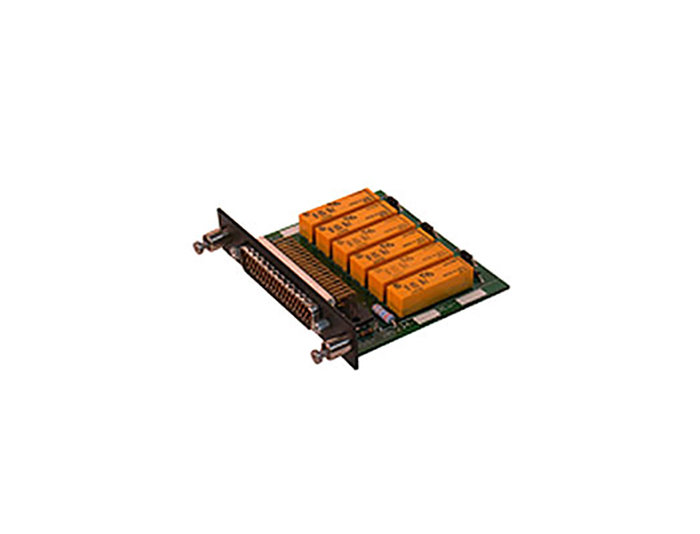

Picture of product SR-64-1

Part #: 306112-00

Model: SR-64-1

OEM:

Sandia Aerospace

Part Number :
Sandia Aerospace
SR64-1 Switching Relay

FEATURES
  • The SR 64 provides 24 poles of switching through six, hermetically sealed, bifurcated relays
  • The relays contacts are gold plated and have a 2 amp resistive load rating at 28 VDC
  • K1, K2, K3 and K4 are switched simultaneously through coil pins, 71 and 72
  • K5 and K6 are independently switched through their coil pins
  • Certification: FAA-PMA Pending
  • Pick up Voltage: 28VDC
  • Nominal Coil Impedance: 120mA
  • Max Contact Rating: 2A @ 28VDC Restive Load

SPECIFICATIONS
Weight: .25 lbs dimensions: W 3.92 x H 3.5 x D .82 in
operating temperature: -20° to +55°C aLTITUDE: 50,000 ft.
voltage: 28 VDC PMA: Pending
Current Req: 120mA
Part Number Description
306112-00 SR64-1 Switching Relay





306112-00
- 24 Pole Relay Switching Unit
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
